PE Welding Rod Won’t Bond to HDPE Sheet? MFR Guide

Quick Answer: Why Won’t PE Welding Rod Bond to HDPE Sheet?

If a PE welding rod will not form a reliable bond with an HDPE sheet, the problem is not always the welding machine, temperature, or operator.

One frequently overlooked cause is material mismatch.

Two products may both be sold as “PE” or “HDPE” but still behave very differently during welding because of differences in:

• PE grade;

• melt flow rate (MFR/MFI);

• molecular weight;

• melt viscosity;

• additives;

• recycled content;

• intended processing method; and

• welding-rod formulation.

This means that matching only the material name is not enough.

For reliable plastic fabrication, the PE sheet, PE welding rod, welding method, and processing parameters must work together as one system.

A Real Customer Case: The Materials Were Both PE, but They Still Wouldn’t Weld Properly

A customer recently contacted us after experiencing an unexpected welding problem with PE sheet and PE welding rod purchased from another supplier.

This customer was not new to plastic fabrication.

Most of their products were already manufactured from PP sheets and PE sheets, so welding thermoplastic materials was part of their normal production process.

However, after receiving a batch of PE sheet and welding rod from another supplier, they encountered two unusual problems.

The first problem was that the PE welding rod could not produce a satisfactory bond between two PE sheets.

The weld appeared difficult to form properly, and the two sheets could not be joined with the reliability required for their products.

The second problem was equally important.

During heating, the customer noticed that the PE sheet supplied by the other manufacturer softened and flowed much faster than the PE material they normally used.

Under similar fabrication conditions, our PE sheet remained noticeably more stable.

After discussing their welding process and material requirements, the problem appeared to be related to the melt-flow characteristics of both the sheet and welding rod.

For the customer's particular welding equipment and processing conditions, the welding rod required a more suitable melt-flow grade. At the same time, the previous supplier's sheet appeared to have excessively high melt flow for the customer's fabrication requirements.

The important point is that the previous supplier did not necessarily deliver something that was “not PE.”

The more accurate description is:

The customer received the wrong PE grades for their particular fabrication process.

That distinction matters.

A sheet can technically be HDPE and still be unsuitable for a specific tank, equipment, or welding application.

A welding rod can technically be PE and still behave poorly with the sheet or welding equipment being used.

This is why a purchase order containing only:

HDPE sheet, black, 10 mm

or:

PE welding rod, black, 4 mm

may not provide enough information for an industrial fabrication project.

The Hidden Problem: “PE” Is Not a Complete Material Specification

One of the most common misunderstandings when purchasing industrial plastic sheet is treating HDPE as if it were one standardized material.

It is not.

HDPE represents a family of polyethylene materials.

Different PE resins can have different:

• molecular weights;

• molecular-weight distributions;

• melt flow rates;

• stiffness;

• impact resistance;

• melt strength;

• processing behavior; and

• long-term performance.

Two black HDPE sheets may look almost identical before fabrication but behave differently when they are:

• extrusion welded;

• hot-gas welded;

• heated;

• bent;

• machined;

• thermoformed;

• fabricated into tanks; or

• exposed to long-term chemical and thermal loads.

The same applies to PE welding rod.

For industrial fabrication, buyers should therefore think in terms of:

PE material family + grade + melt behavior + welding method + application

rather than simply:

PE + size + color.

What Is MFR/MFI and Why Does It Matter in PE Welding?

MFR means Melt Mass-Flow Rate.

MFI means Melt Flow Index, an older term that is still commonly used in the plastics industry.

Both are frequently used when discussing how easily a thermoplastic flows in its molten state under defined testing conditions.

In simplified terms:

Lower MFR → generally higher melt viscosity

Higher MFR → generally easier melt flow

This parameter is important during PE fabrication because welding requires both the base material and filler material to reach a suitable plasticized state.

The surfaces must become soft enough for molecular interaction and fusion, but the molten material must also remain controllable.

This balance is especially important in extrusion welding.

Higher MFR Does Not Automatically Mean Better Weldability

A common assumption is:

If PE has a higher MFR, it melts and flows more easily, so it should weld better.

That is not necessarily correct.

Higher MFR generally means that the polymer flows more easily once it has reached the specified molten testing condition.

However, structural plastic fabrication does not require maximum flow.

It requires controlled melt behavior.

If an HDPE sheet becomes excessively fluid during welding, it may:

• deform around the weld;

• lose edge definition;

• flow away from the joint;

• become difficult to control;

• develop excessive squeeze-out; or

• create an unstable welding area.

For this reason:

Higher flowability does not automatically mean better weldability.

For tanks and industrial equipment, good weldability normally requires a suitable balance between melt flow and melt strength.

MFR Does Not Simply Mean “Melting Speed”

This distinction is important when interpreting what an operator sees during welding.

If one HDPE sheet appears to “melt faster” than another, this does not necessarily mean that it has a dramatically lower melting temperature.

The operator may actually be observing a difference in melt viscosity and melt strength after the material has been heated.

A higher-flow PE grade may become much more mobile once plasticized.

This can make it appear to melt much faster even though the actual explanation is more complex.

That is similar to what our customer observed when comparing the previous supplier's PE sheet with ours.

Why the MFR Test Condition Must Always Be Stated

An MFR number by itself is incomplete.

For example:

MFR: 3 g/10 min

does not provide enough information.

You must also know the test condition.

Examples include:

190°C / 2.16 kg

or:

190°C / 5 kg

Values measured under different loads cannot simply be compared as if they were the same measurement.

This is particularly important when comparing technical data sheets from different suppliers.

It is also why statements such as:

PE welding rod must always have an MFR above 3.

should not be treated as a universal industry rule.

In some welding processes and equipment configurations, a welding rod with a relatively higher MFR may work better.

In others, a different grade may be required.

The correct question is therefore:

Is the welding rod's melt-flow behavior suitable for the sheet, equipment, and welding process being used?

How MFR Mismatch Can Cause Poor PE Welding

During a successful PE weld, both the base sheet and filler material must develop compatible molten layers.

Imagine that the welding rod becomes highly fluid while the sheet remains much more viscous.

Or the opposite:

the sheet becomes extremely soft while the welding rod does not plasticize in the same way.

Even though both products are polyethylene, their behavior inside the weld zone can be significantly different.

Possible problems include:

• incomplete fusion;

• unstable weld beads;

• poor penetration;

• excessive material flow;

• insufficient bonding;

• excessive squeeze-out;

• voids;

• deformation;

• inconsistent extrusion output; and

• reduced weld strength.

MFR is therefore not the only parameter that determines weldability, but it can be an important clue when two PE materials behave very differently during welding.

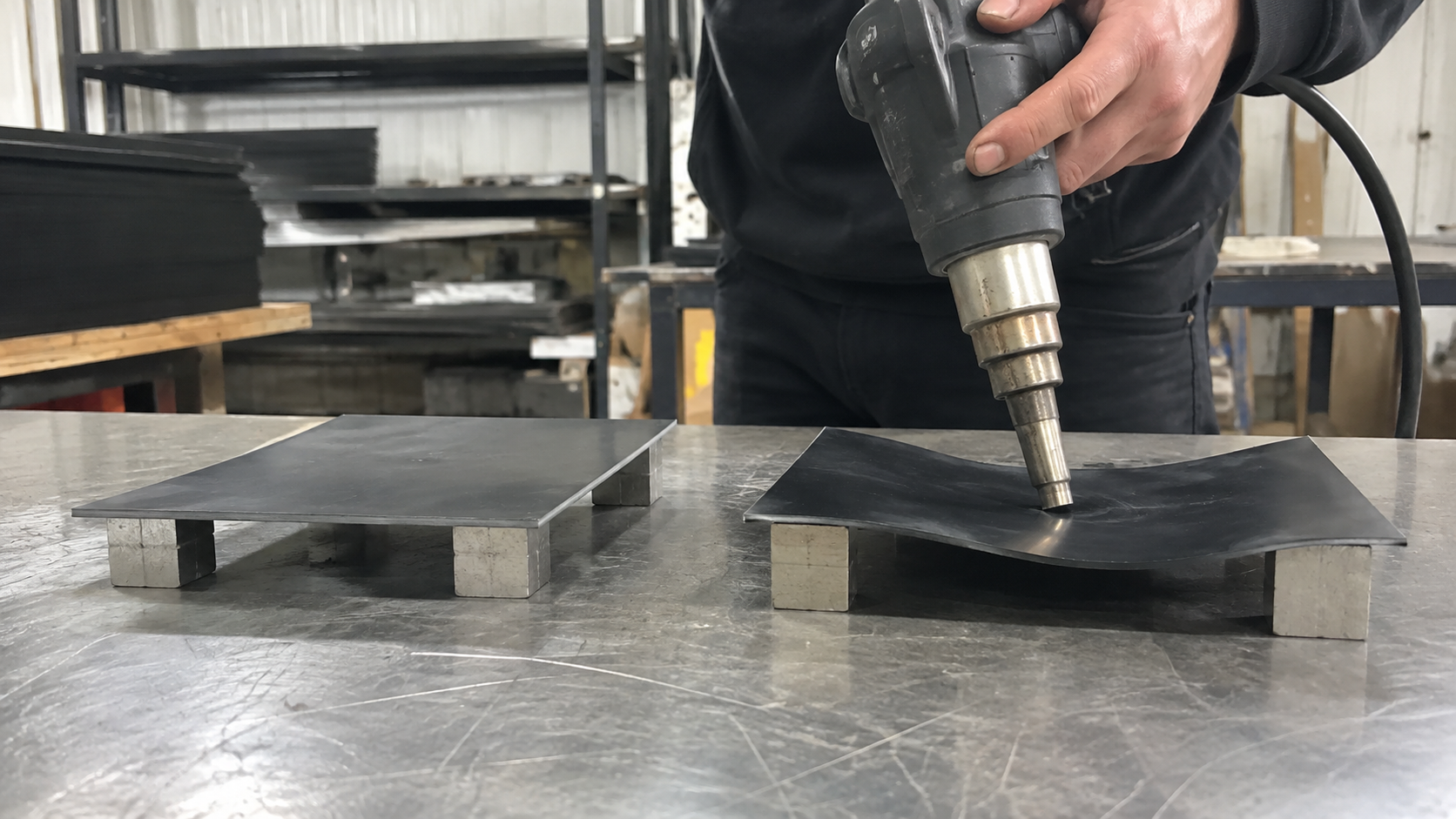

Why an HDPE Sheet May Soften or Flow Too Quickly During Welding

When a fabricator says:

This HDPE sheet melts too fast.

several possible causes should be investigated.

1. The Sheet Has a Higher Melt Flow Rate

A higher-flow PE grade may become much more mobile after reaching the molten state.

This can make fabrication difficult when the process requires good melt strength and dimensional stability.

2. The Resin Grade Is Different

Different HDPE resin grades can be designed for very different manufacturing methods.

A resin optimized for one process is not automatically suitable for welded sheet fabrication.

3. Recycled Material or Mixed Resin Is Present

Recycled content is not automatically unsuitable.

However, poorly controlled recycled formulations or mixed resin sources can result in inconsistent processing behavior.

4. Additives or Fillers Are Different

Pigments, fillers, stabilizers, processing aids, and other additives may influence melt behavior.

5. Welding Temperature Is Too High

Before blaming the sheet, the actual welding temperature should always be checked.

Excessive heat can make even a suitable PE material difficult to control.

6. Welding Speed Is Too Slow

If the heat source remains in one location for too long, excessive softening can occur.

This is why material and process must always be evaluated together.

PE Sheet and Welding Rod Compatibility: What Should You Check?

A compatible welding system requires more than matching the word “PE.”

Polymer Family

For normal structural fabrication, PE base material should be welded using a compatible PE filler material.

PP welding rod should not be substituted simply because the appearance is similar.

PE Grade

Identify whether the material is:

• PE-HD / HDPE;

• PE80;

• PE100; or

• another defined PE grade where applicable.

Melt Flow Characteristics

Compare the MFR of the sheet and welding rod whenever reliable data is available.

Always compare values measured under equivalent test conditions.

A significant difference in melt behavior should be investigated before mass production.

Welding Method

Determine whether the customer is using:

• hot-gas welding; or

• extrusion welding.

The requirements are not identical.

Welding Equipment

Extrusion welders from different manufacturers may process rods differently.

Rod diameter, feed mechanism, screw design, output, temperature, and welding shoe all influence the result.

Application

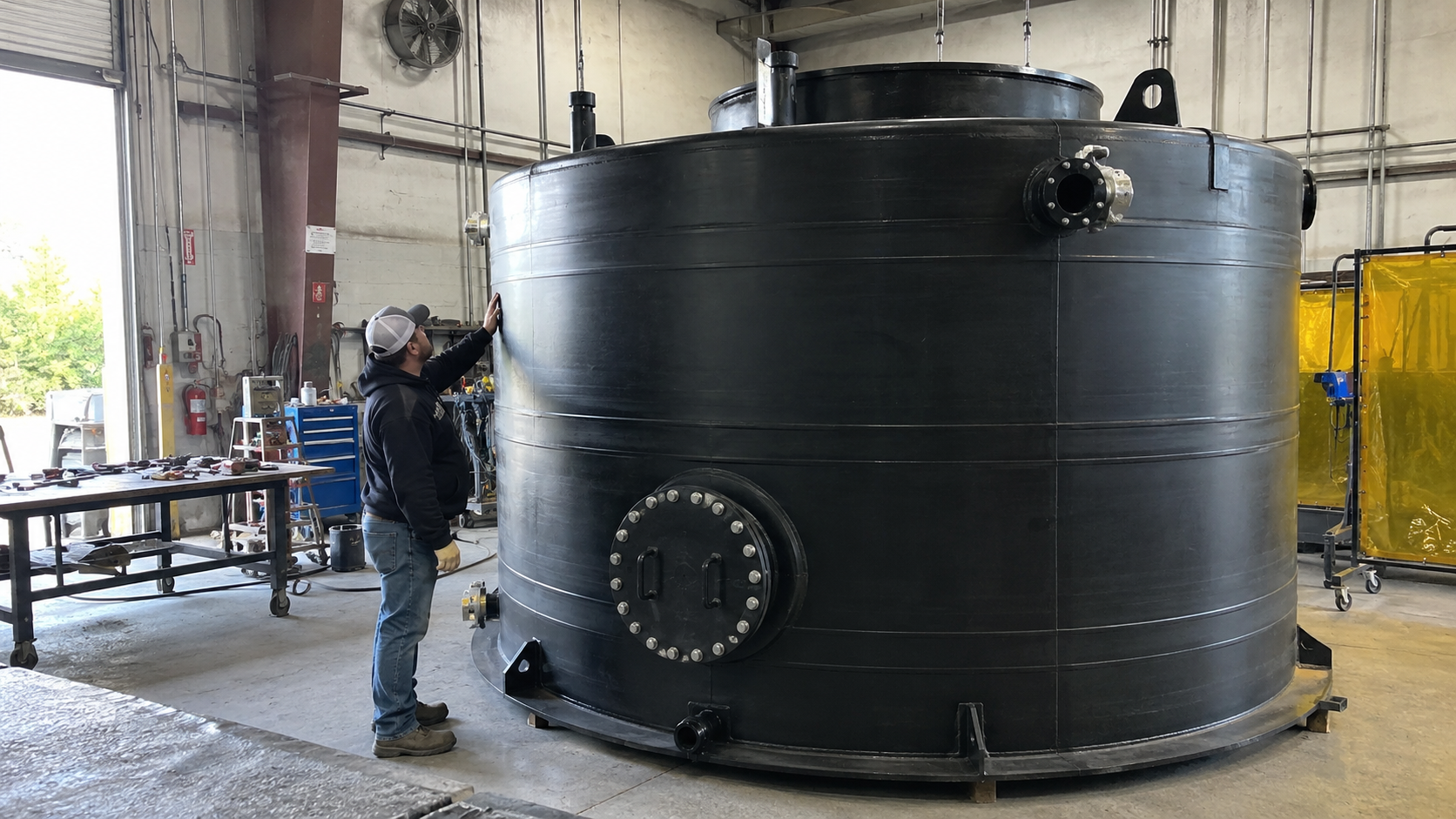

The requirements for a small non-structural plastic fabrication and a chemical storage tank are completely different.

If weld failure could cause leakage, shutdown, chemical release, or equipment damage, material selection should be treated more seriously.

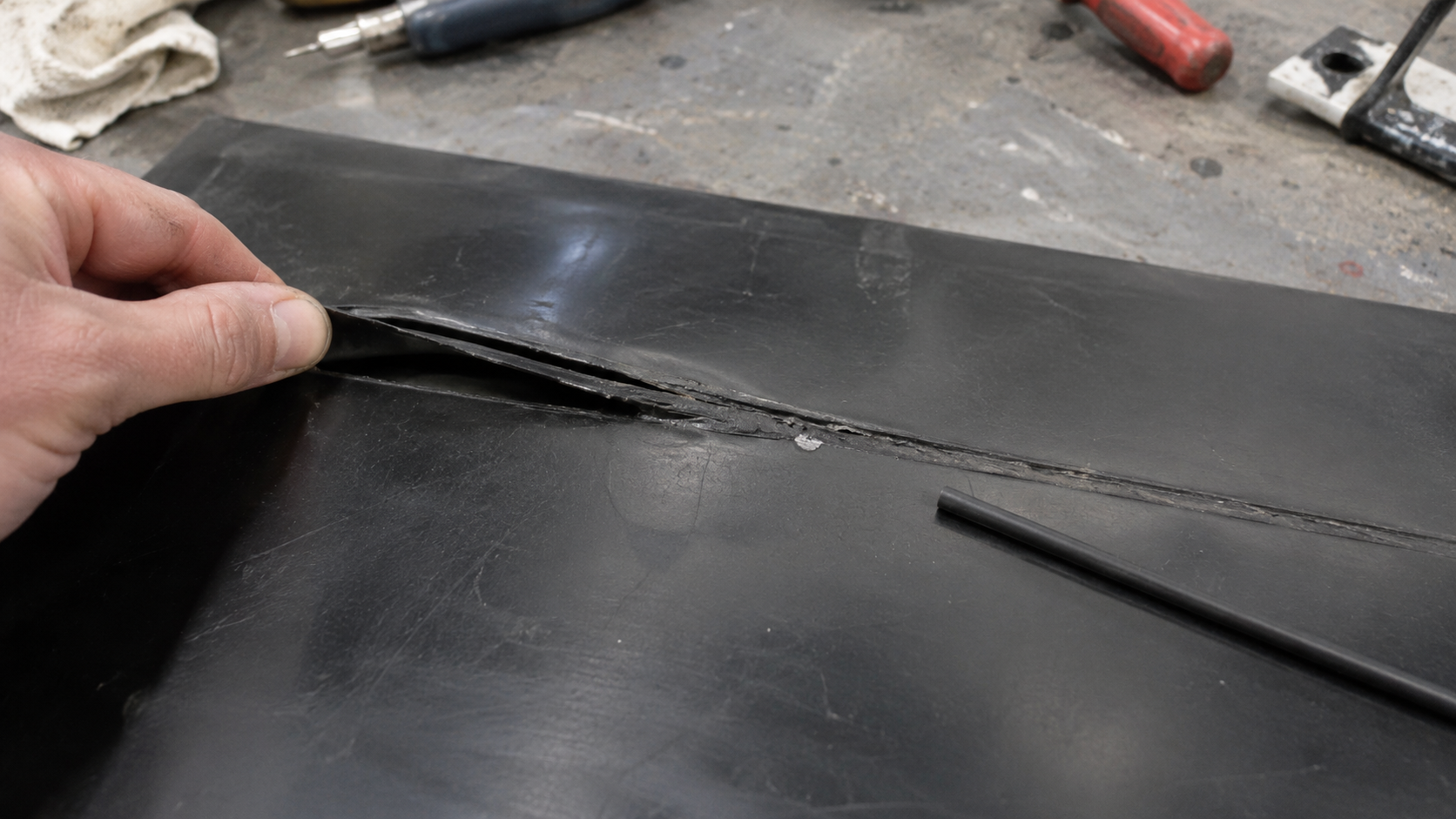

7 Common Reasons PE Welding Rod Does Not Bond to HDPE Sheet

1. Wrong Welding Rod Grade

The rod is PE, but its grade or melt characteristics are unsuitable for the sheet or machine.

This should be investigated particularly when the same welder can successfully weld another HDPE material.

2. MFR or Melt Viscosity Mismatch

The welding rod and sheet do not plasticize in a compatible manner.

One becomes highly fluid while the other remains relatively viscous.

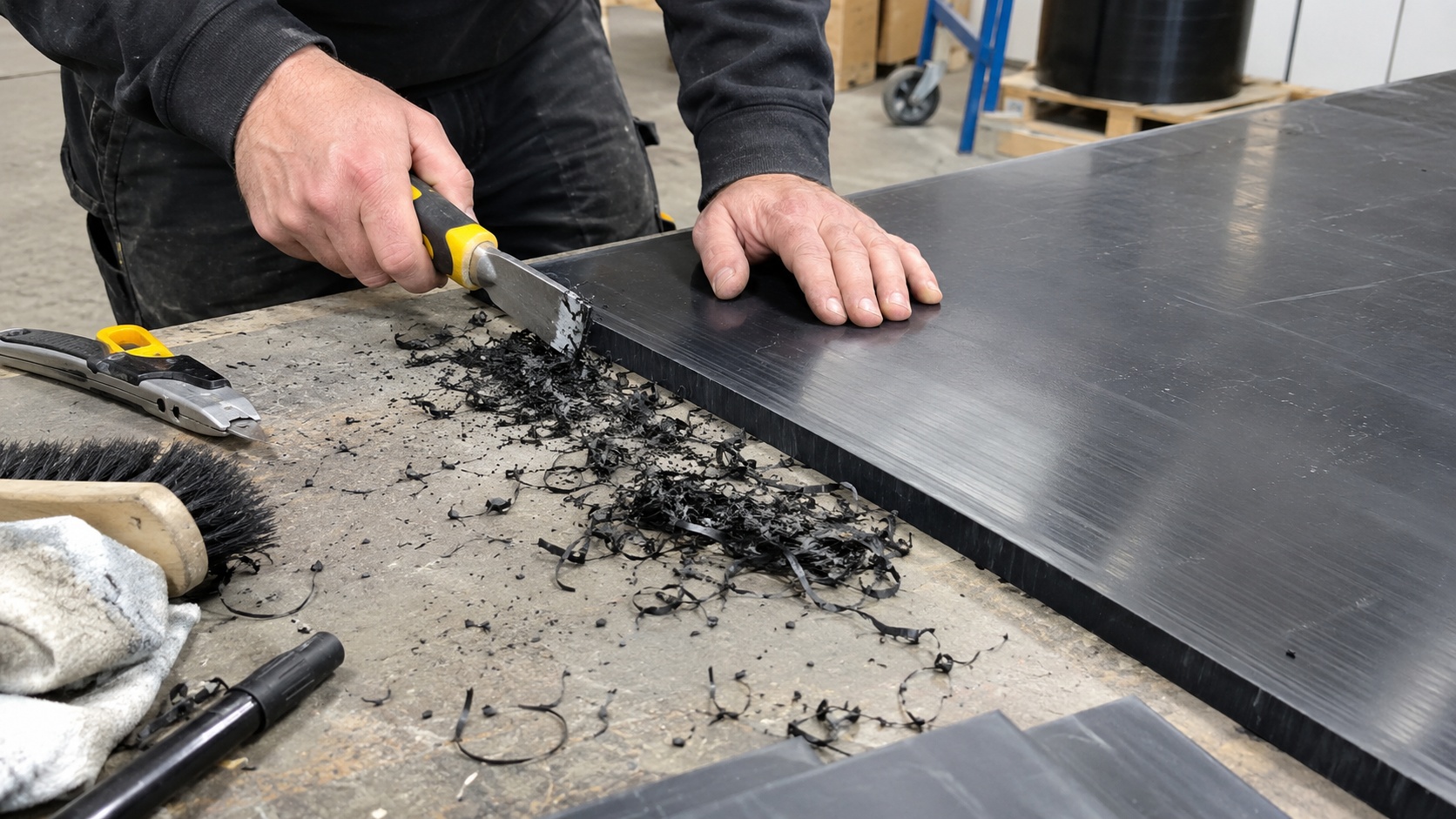

3. Insufficient Surface Preparation

HDPE surfaces may develop an oxidized surface layer.

Before welding, the joint area is commonly mechanically prepared to expose fresh material.

4. Contamination

Oil, dust, moisture, grease, or other contamination can prevent reliable fusion.

Freshly prepared surfaces should remain clean before welding.

5. Insufficient Preheating

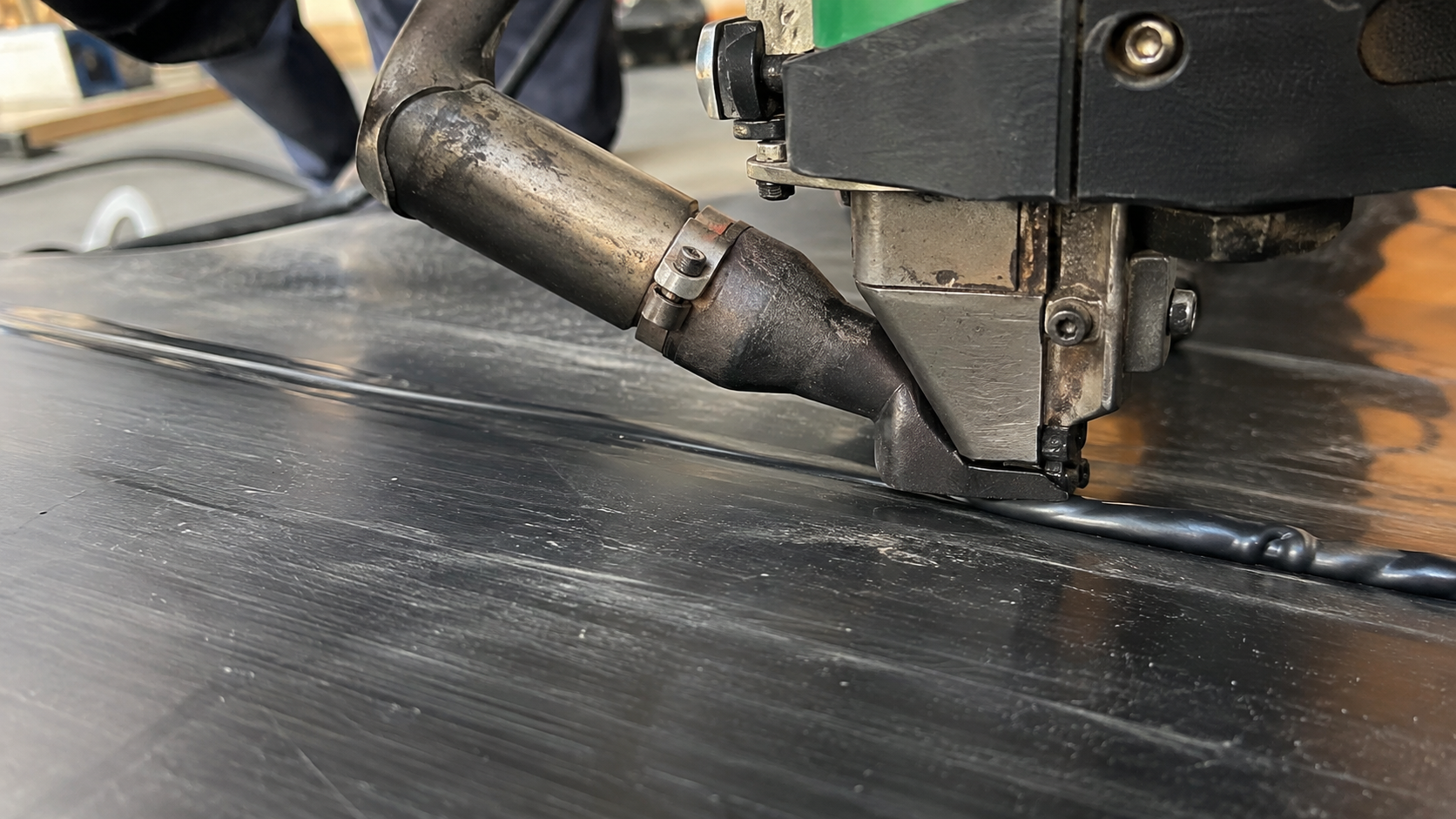

During extrusion welding, molten PE filler should not simply be placed onto a cold sheet.

The base surface must also reach a suitable plasticized condition.

Otherwise, the weld may appear attached but have poor fusion underneath.

6. Excessive Heat

More heat does not automatically produce a stronger weld.

Excessive temperature may cause:

• polymer degradation;

• oxidation;

• deformation;

• excessive flow;

• discoloration; and

• reduced weld quality.

7. Incorrect Speed, Pressure, or Welding Shoe

Temperature is only one welding parameter.

Welding speed, pressure, extrusion output, shoe design, and joint geometry also affect the final result.

How to Diagnose an HDPE Welding Failure Step by Step

When a PE weld fails, do not immediately increase the welding temperature.

Use a structured troubleshooting process.

Step 1: Identify the PE Sheet

Confirm as much information as possible:

• polymer type;

• exact grade;

• density;

• MFR;

• MFR test condition;

• manufacturer;

• batch;

• virgin or recycled formulation where relevant.

If the supplier cannot provide basic material information, troubleshooting becomes much harder.

Step 2: Identify the Welding Rod

Check:

• material type;

• PE grade;

• MFR;

• MFR test condition;

• rod diameter;

• intended welding method;

• manufacturer; and

• technical data sheet.

Do not assume that all black PE welding rods are equivalent.

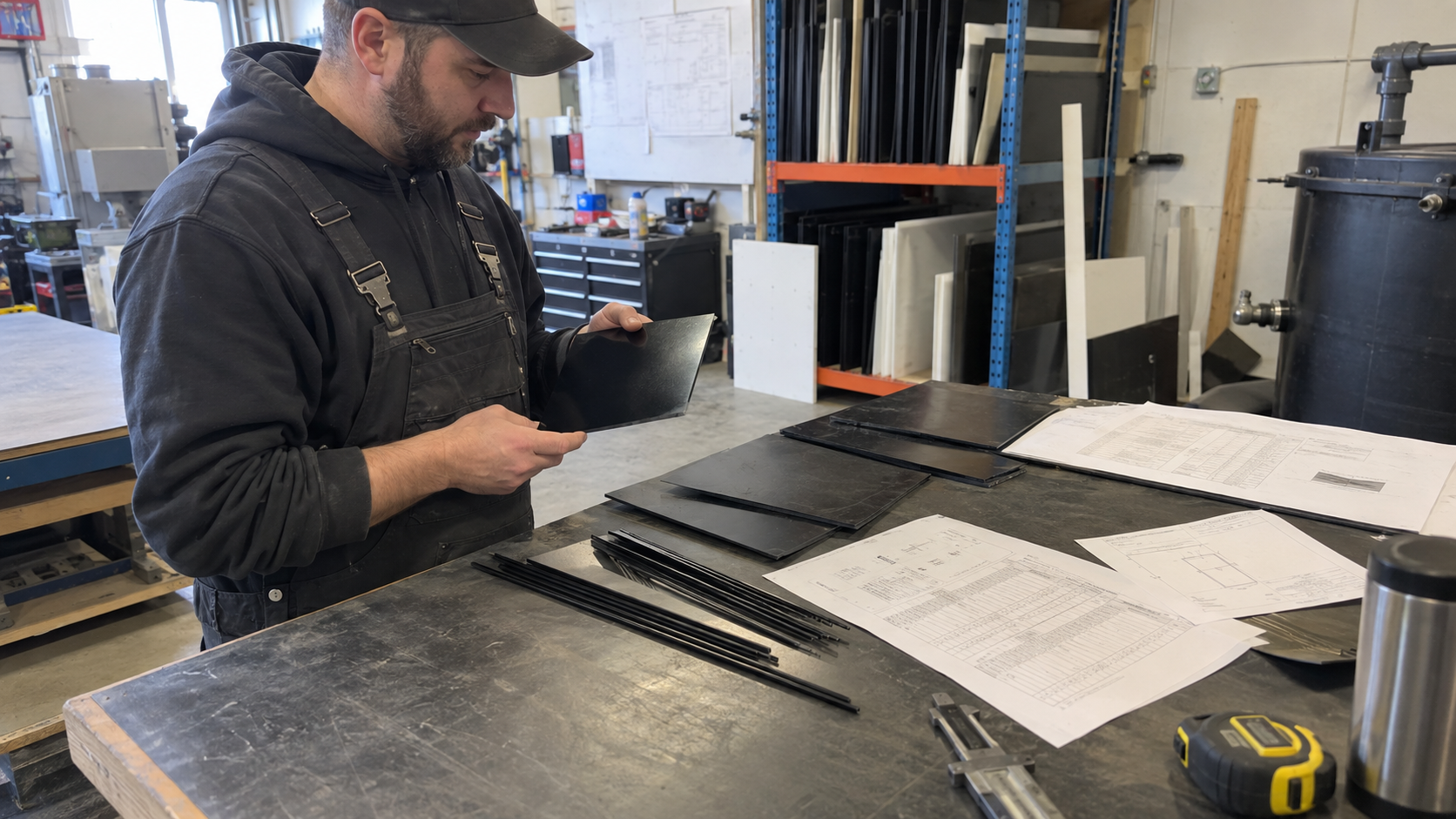

Step 3: Compare the Problem Material With a Known-Good Material

This is one of the most useful practical tests.

If the same:

• operator;

• welding machine;

• welding method; and

• approximate settings

work reliably with one HDPE sheet but not another, the material itself deserves closer investigation.

This was an important clue in our customer's case.

The customer already had experience welding PP and PE, but the previous supplier's material behaved noticeably differently.

Step 4: Compare Melt Behavior

Observe whether the sheet or welding rod:

• softens excessively;

• remains too viscous;

• flows away from the joint;

• feeds inconsistently;

• forms an unstable bead; or

• fails to fuse into the base material.

These symptoms can help determine whether the issue is mainly process-related or material-related.

Step 5: Inspect the Joint Preparation

Check for:

• oxidation;

• dirt;

• oil;

• moisture;

• machining debris; and

• contaminated tools.

Surface preparation should normally be carried out shortly before welding.

Step 6: Verify Welding Parameters

Record:

• extrudate temperature;

• hot-air temperature;

• airflow;

• welding speed;

• extrusion output;

• rod diameter;

• shoe geometry.

For PE-HD extrusion welding, published industrial processing guides often use extrudate temperatures in the approximate region of 210–230°C.

However, this should only be treated as a general reference.

The actual settings should follow the sheet supplier, welding equipment manufacturer, welding procedure, and qualified test results.

Step 7: Produce a Test Weld Before Fabricating the Full Product

Before manufacturing an entire tank or large structure, test the actual combination of:

• sheet;

• welding rod;

• machine;

• operator; and

• welding settings.

A small test can reveal compatibility problems before large amounts of material and labor are committed.

Hot Gas Welding vs Extrusion Welding

The welding method also affects material requirements.

Hot Gas Welding

Hot gas heats both the welding rod and joining surfaces.

The operator manually applies pressure while moving the welding rod through the joint.

Hot-gas welding is commonly used for:

• thinner plastic sheets;

• small joints;

• repairs;

• detail welding.

Operator technique has a particularly strong influence on the result.

Extrusion Welding

An extrusion welder feeds PE welding rod or compatible feedstock into an extruder.

The material is plasticized inside the machine and deposited into the joint while hot air preheats the base sheet.

Extrusion welding is commonly used for:

• PE tanks;

• chemical storage equipment;

• scrubbers;

• large process vessels;

• ventilation equipment; and

• thick-sheet fabrication.

Because the welding rod must be processed through an extruder, its melt behavior is particularly important.

An unsuitable welding rod may:

• feed poorly;

• produce unstable output;

• become too fluid;

• fail to form a controllable bead.

This is why extrusion welding rod should be selected according to the material system and equipment, not simply by color and diameter.

What MFR Should PE Welding Rod Have?

There is no universal MFR value suitable for every PE welding rod.

This is one of the most important points in this article.

In our customer's particular application, the experience indicated that a welding rod with a more suitable, relatively higher melt flow was needed for their equipment and process.

However, this should not be interpreted as:

Every PE welding rod in every application must have an MFR above one specific value.

The correct range depends on:

• welding-rod resin grade;

• HDPE sheet grade;

• MFR testing condition;

• extrusion-welding machine;

• welding-rod diameter;

• processing temperature;

• required extrusion output; and

• application.

Therefore, when purchasing welding rod, ask:

What PE grade is this rod made from, what is its MFR under the stated test condition, and is it suitable for my welding process?

That is much more useful than asking only:

Is this PE welding rod?

HDPE Welding Troubleshooting Table

The table illustrates an important troubleshooting principle:

Do not automatically treat every welding failure as an operator problem.

Sometimes the correct solution is to change the material rather than changing the welding temperature.

How to Specify HDPE Sheet for Welded Tanks and Equipment

Industrial buyers frequently send RFQs containing only:

HDPE Sheet
Black
10 mm
2000 × 4000 mm

For simple applications this may be enough.

For welded tanks and equipment, it may not be.

A better RFQ should include:

Material: PE-HD / HDPE
Application: Welded chemical tank
Welding method: Extrusion welding
Thickness: 10 mm
Size: 2000 × 4000 mm
Color: Black
Virgin material requirement: If applicable
MFR requirement: If specified
MFR test condition: Required
Chemical medium: [chemical]
Operating temperature: [temperature]
Welding rod: Required
Welding rod compatibility: Must match supplied sheet

This gives the supplier enough information to select material according to the application instead of simply supplying the cheapest PE sheet with the requested dimensions.

What Should You Tell Your PE Sheet Supplier Before Ordering?

For welded fabrication, communicate as much of the following information as possible.

The supplier should also ask these questions.

If the buyer says:

We need HDPE sheet for tank fabrication.

an experienced supplier should not only reply:

What size and quantity?

They should also want to understand:

what the customer is manufacturing and how the material will be processed.

How to Prevent Buying the Wrong HDPE Sheet or Welding Rod

The most effective way to solve welding problems is to prevent them before shipment.

Define an Approved Material Specification

For repeat production, record:

• PE grade;

• density;

• MFR;

• MFR test condition;

• relevant mechanical properties;

• color;

• raw-material requirement;

• approved welding rod.

This prevents future purchasing staff from selecting a material based only on price and dimensions.

Tell the Supplier the Final Application

A sentence such as:

This sheet will be extrusion welded into a chemical storage tank.

provides much more useful information than:

We need 10 mm black HDPE sheet.

The application may affect which resin grade the supplier recommends.

Confirm the Welding Rod at the Same Time

Whenever possible, confirm the PE welding rod when selecting the sheet.

The objective is not necessarily to purchase both products from the same manufacturer.

The important point is to verify that they form a compatible material system.

Ask for Technical Data

Request a technical data sheet that includes important properties such as:

• density;

• MFR;

• tensile properties;

• elongation;

• service-temperature information.

For MFR, make sure the test condition is shown.

Test Samples Before Large Orders

If the material is new to your factory, test it before purchasing a large quantity.

Use the actual:

• sheet;

• welding rod;

• machine;

• welding method; and

• production operator.

For industrial tank fabrication, the cost of a test sample is extremely small compared with the cost of discovering a material problem after fabrication has started.

Frequently Asked Questions About PE Welding Rod and HDPE Sheet

Can PE Welding Rod Be Used on HDPE Sheet?

Yes, provided the welding rod is suitable for the HDPE grade and welding method.

The word “PE” alone does not guarantee optimum compatibility.

Why Does My PE Welding Rod Melt but Not Stick to the HDPE Sheet?

The filler may be molten while the sheet surface is not sufficiently plasticized.

Possible causes include:

• insufficient preheating;

• surface oxidation;

• contamination;

• excessive welding speed;

• unsuitable welding rod;

• incompatible melt behavior.

A molten bead sitting on the sheet is not the same as a properly fused weld.

Does HDPE Welding Rod Need a Higher MFR Than the Sheet?

Not as a universal rule.

Some extrusion-welding systems may perform better with a filler grade having different melt-flow characteristics from the base sheet.

However, the correct relationship depends on the specific resin grades, equipment, process, and MFR test conditions.

Does Higher MFR Mean HDPE Melts Faster?

Not exactly.

MFR measures the flow of molten polymer under standardized conditions.

A higher-MFR PE normally has lower melt viscosity, so once heated it may flow and deform more easily.

This can make the material appear to “melt faster” during fabrication.

Why Does One Supplier’s HDPE Sheet Weld Differently From Another Supplier’s Sheet?

Possible causes include differences in:

• resin grade;

• MFR;

• molecular weight;

• additives;

• pigments;

• recycled content;

• sheet manufacturing conditions.

Two HDPE sheets that look identical are not necessarily technically equivalent.

What Temperature Should Be Used for HDPE Extrusion Welding?

There is no single universal setting.

Published processing guidance for PE-HD commonly places the extrudate in approximately the 210–230°C region.

However, actual parameters depend on the material, equipment, welding speed, joint geometry, and procedure.

Always verify the settings using the sheet supplier's and welding-equipment manufacturer's recommendations.

Should I Buy HDPE Sheet and Welding Rod From the Same Supplier?

It is not mandatory.

However, purchasing them as a confirmed compatible system can reduce risk.

If they are purchased separately, compare technical data instead of matching only the words “HDPE” and “PE.”

What Should I Ask Before Ordering HDPE Sheet for Welding?

At minimum, confirm:

• exact PE grade;

• application;

• MFR and test condition;

• welding method;

• welding-rod compatibility;

• operating temperature;

• chemical exposure;

• material consistency requirements.

Most importantly, tell the supplier what you are going to manufacture.

The Most Important Lesson: Same PE Does Not Mean Same Processing Behavior

Our customer's experience provides a useful lesson.

They were already experienced users of PE and PP sheets.

They routinely fabricated plastic products.

Yet they still received a combination of sheet and welding rod that did not perform properly in their process.

This demonstrates how easily a purchasing mistake can occur when the material specification is incomplete.

The supplier may deliver:

• the correct dimensions;

• the correct thickness;

• the correct color;

• and even a material that is technically HDPE.

But that does not guarantee the material is suitable for the customer's welding process.

The correct objective is not simply:

Buy HDPE sheet + buy PE welding rod.

It is:

Select an HDPE sheet, welding rod, and welding process that are compatible with each other.

For welded tanks, scrubbers, process vessels, and industrial equipment, material selection should therefore be treated as an engineering decision rather than only a purchasing decision.

At YuboPlastic, when PE or PP sheets are intended for welding and fabrication, understanding the customer's final application, processing method, and material requirements helps us recommend a more suitable sheet and welding consumable combination.

The goal is not merely to supply a plastic sheet with the correct dimensions.

The goal is to supply material that performs correctly in the customer's actual production process.
