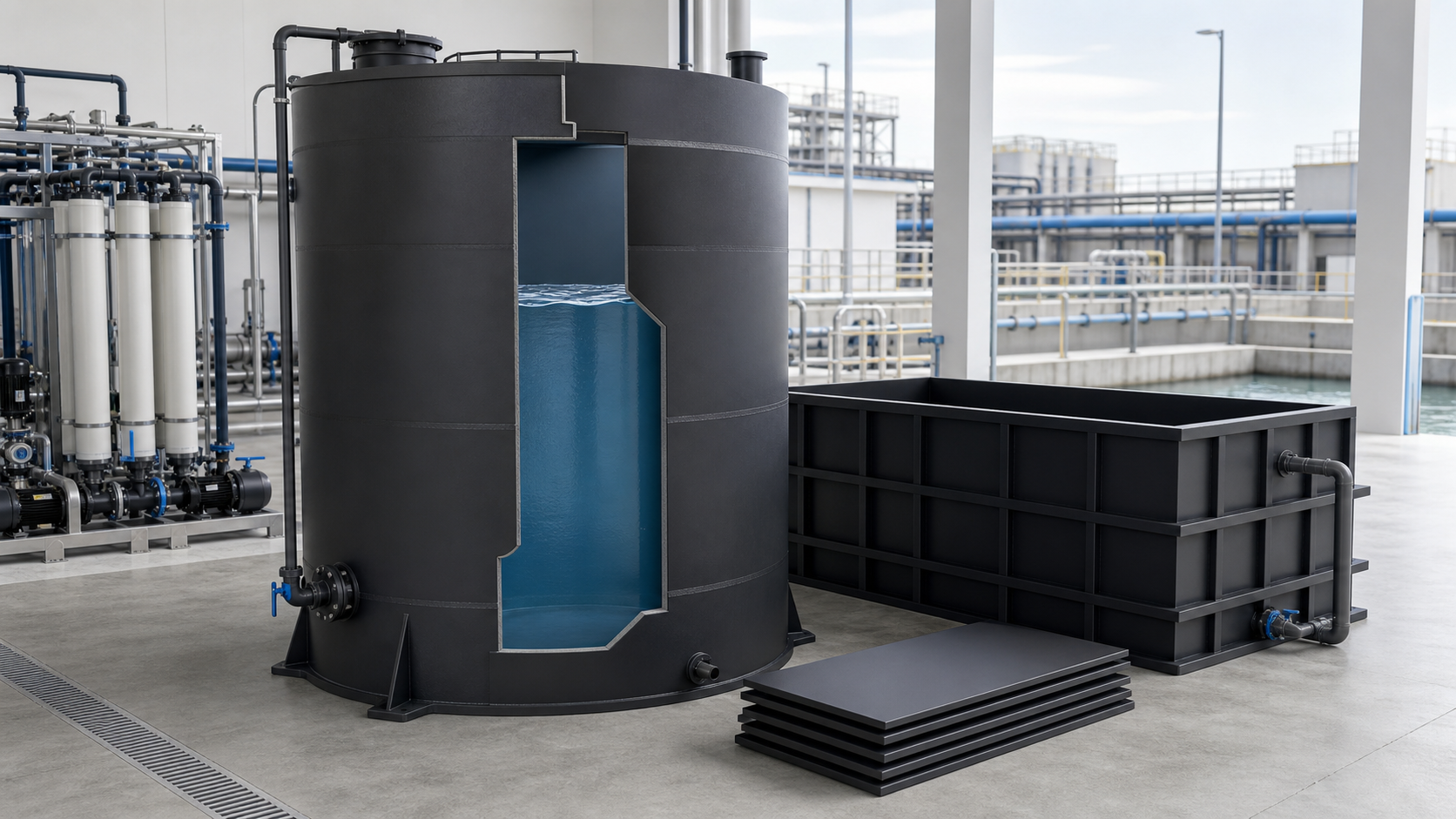

HDPE Sheet Thickness Guide for Water and Wastewater Tanks

Selecting HDPE sheet thickness for a water or wastewater tank is not as simple as matching a tank capacity to a standard plate size.

Two tanks with the same volume may need very different wall thicknesses. Liquid depth, tank diameter, unsupported panel span, specific gravity, temperature, tank shape, reinforcement, welded joints, nozzles, installation conditions and required service life can all change the final design.

This guide explains the preliminary thickness ranges commonly considered for welded HDPE sheet tanks, how engineers determine the final wall thickness, and what information buyers should provide before ordering material.

Important: The thickness ranges in this guide are preliminary purchasing and planning references. They are not final structural specifications. A qualified tank designer or fabricator should verify the complete tank design against the applicable standard and local regulations.

Quick Answer: What Thickness of HDPE Sheet Does a Water Tank Need?

For above-ground welded HDPE water and wastewater tanks, 8–30 mm is a common preliminary sheet range.

As a general starting point:

• 8–10 mm HDPE may be considered for small, shallow or closely reinforced tanks.

• 12–15 mm HDPE is commonly evaluated for small to medium tanks with moderate liquid depth.

• 20–25 mm HDPE may be required for taller tanks, larger unsupported spans, lower cylindrical shell courses or more demanding wastewater service.

• 30 mm and thicker sheet may be needed for large tanks, high liquid columns, elevated temperatures, heavy liquids, major nozzles, agitators or severe external loads.

These ranges must not be selected from tank volume alone. A 5,000-liter tall tank can impose different wall stress from a 5,000-liter short, wide tank. A rectangular tank can also require more reinforcement than a cylindrical tank of the same capacity.

The correct design sequence is:

Liquid and operating conditions → tank dimensions → tank geometry → loads → design calculation → reinforcement → final HDPE sheet thickness.

Preliminary HDPE Tank Thickness Guide

The following table is intended for early budgeting and material planning only.

This table does not establish a safe capacity for any thickness. The same 15 mm HDPE sheet may be adequate in one reinforced design and inadequate in another unreinforced design.

The bottom, roof, manway, nozzles and reinforcement must also be checked separately. A thick tank wall cannot compensate for an improperly designed outlet, weak weld or unsupported roof.

Why Tank Capacity Alone Cannot Determine Sheet Thickness

Tank capacity describes how much liquid the tank stores. It does not fully describe how that liquid loads the tank wall.

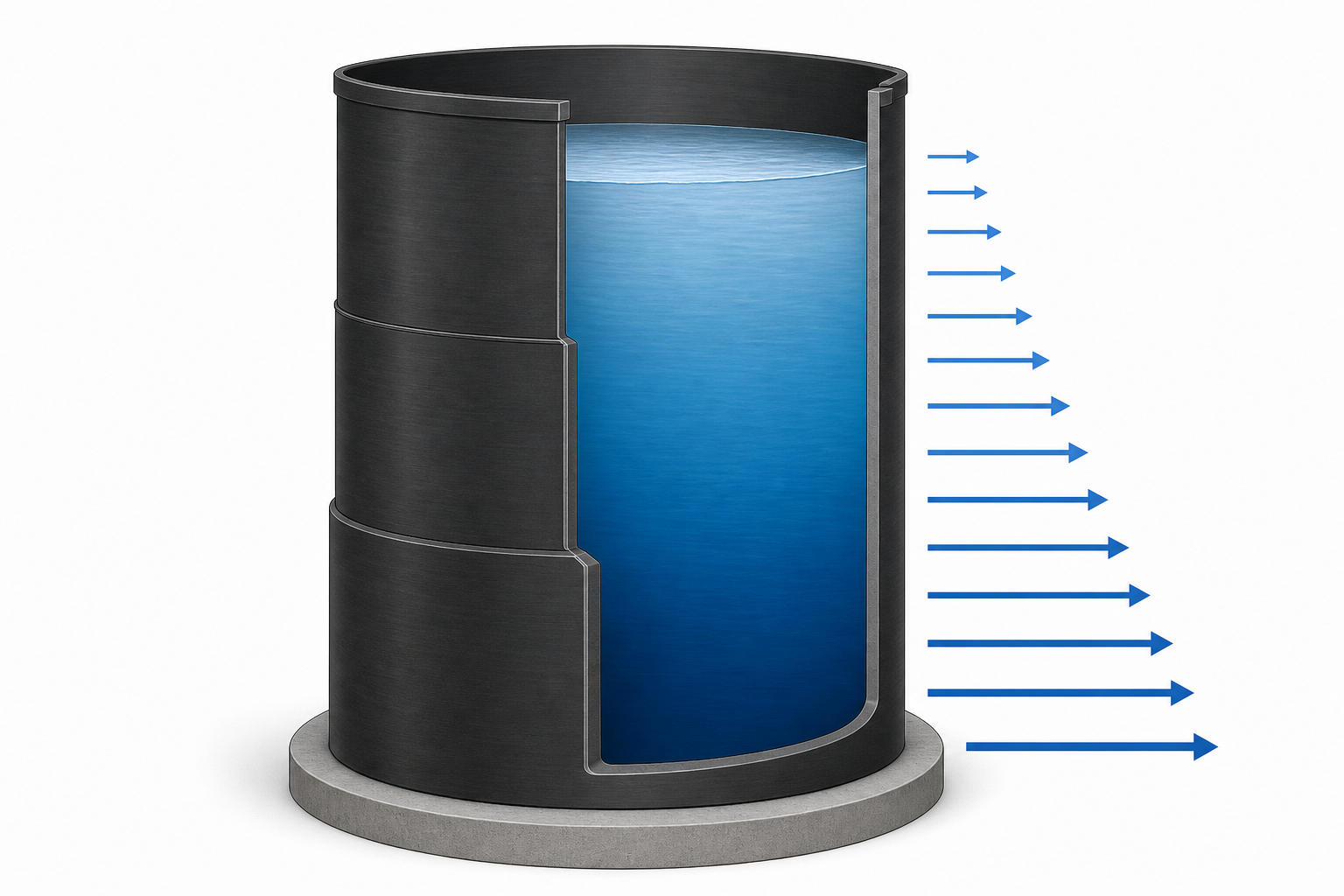

Liquid depth controls hydrostatic pressure

Hydrostatic pressure increases with liquid depth:

p = ρgh

Where:

• p = hydrostatic pressure

• ρ = liquid density

• g = gravitational acceleration

• h = liquid depth

A 3-meter column of water produces approximately 29.4 kPa of pressure at the bottom. If the liquid has a specific gravity of 1.2, the bottom pressure increases to approximately 35.3 kPa.

This is why the lower part of a tall tank normally carries more load than the upper part.

Diameter affects cylindrical tank stress

For a simplified thin-wall cylindrical vessel, circumferential or hoop stress is proportional to:

Pressure × tank diameter ÷ wall thickness

This conceptual relationship shows why both liquid height and tank diameter matter. Increasing tank diameter without changing the wall thickness can increase the structural demand on the shell.

A final thermoplastic tank calculation must also include long-term material properties, temperature, chemical effects, weld factors, safety factors, design life and other loads.

Unsupported span affects rectangular tanks

Rectangular tank walls behave as flat panels. They resist liquid pressure primarily through bending rather than circumferential membrane action.

The required design therefore depends heavily on:

• Panel height and width

• Distance between stiffeners

• Edge restraint

• Reinforcement stiffness

• Wall-to-bottom connections

• Tie rods or external frames

A wall divided into short, reinforced spans may use less sheet thickness than a large, unreinforced panel. However, the reinforcement system and sheet must be calculated together.

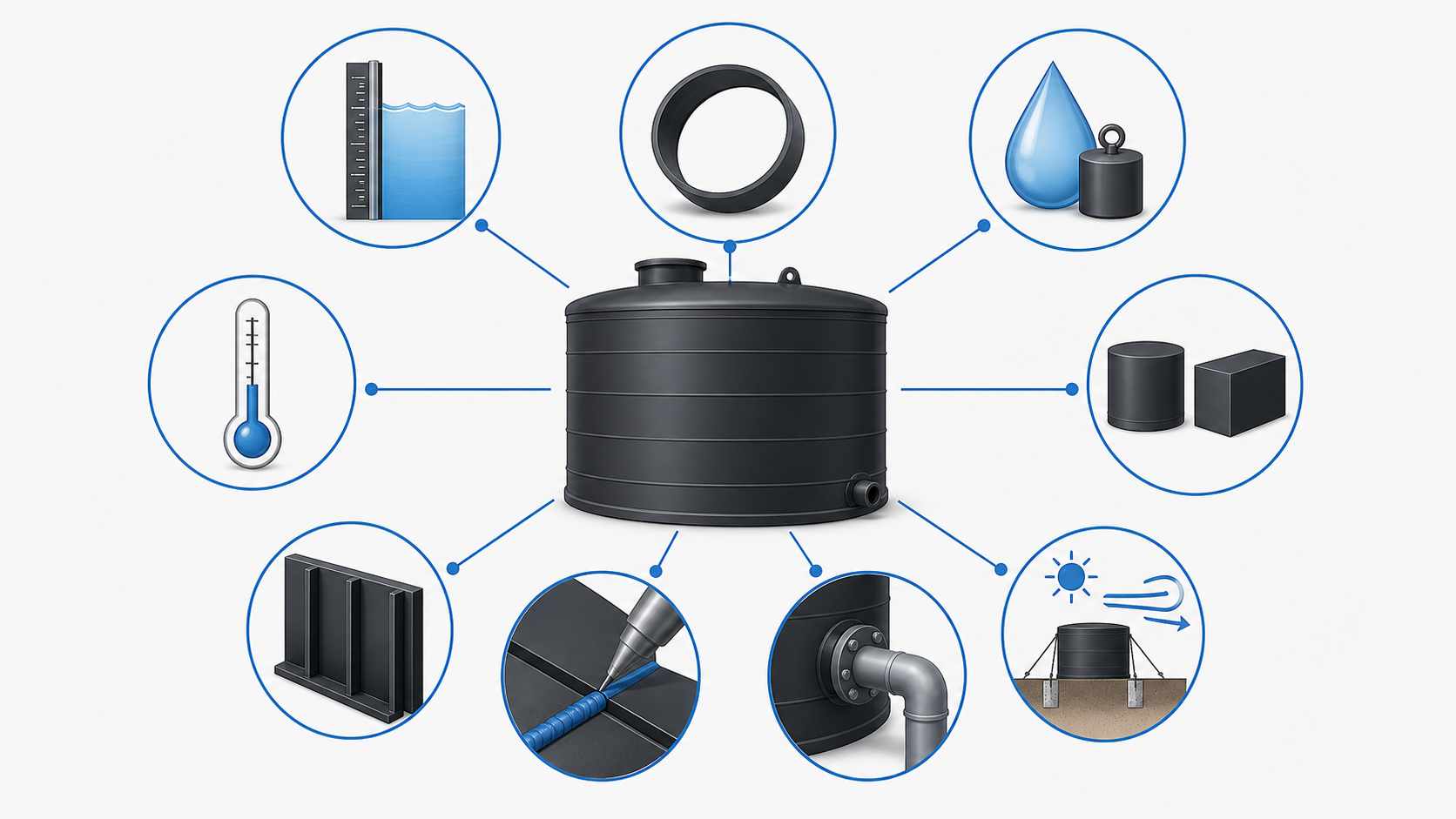

9 Factors That Determine HDPE Tank Wall Thickness

1. Maximum Liquid Depth

Maximum filling height is one of the most important design inputs.

Pressure is lowest near the liquid surface and highest at the bottom. Increasing tank height can increase bottom pressure even when total tank volume remains unchanged.

Always provide both overall tank height and maximum operating liquid level.

2. Tank Diameter or Unsupported Panel Span

For cylindrical tanks, diameter influences circumferential stress.

For rectangular tanks, the important dimension is often the unsupported distance between walls, ribs, frames or tie rods.

Tank length, width and diameter are therefore more useful design inputs than volume alone.

3. Liquid Specific Gravity

Water has a specific gravity close to 1.0. Wastewater, sludge, leachate and chemical solutions may be heavier.

A higher specific gravity means more liquid mass and greater hydrostatic loading. The designer should use the maximum credible specific gravity, including suspended solids, process variations and abnormal operating conditions.

“Wastewater” is not a sufficient specification. The designer may need information about:

• Total suspended solids

• Sludge concentration

• Dissolved salts

• Oils or solvents

• Treatment chemicals

• Maximum and minimum specific gravity

4. Operating Temperature and Design Life

HDPE is a thermoplastic, so its long-term mechanical behavior changes with temperature and time.

A tank continuously loaded for many years cannot be designed using only short-term room-temperature tensile strength. Long-term creep must be considered.

Warmer service conditions can reduce allowable design stress and may increase the required wall thickness or reinforcement. The calculation should use the actual HDPE grade, design temperature and required service life.

5. Tank Shape

Cylindrical and rectangular tanks do not behave in the same way.

Round tanks distribute internal pressure around the circumference and are generally structurally efficient.

Rectangular tanks have flat walls that tend to bend and bulge. They commonly require thicker sheets, closer reinforcement, external frames or tie rods.

Horizontal cylindrical tanks, conical bottoms and sloped-bottom tanks introduce additional structural conditions and require their own calculations.

6. Reinforcement and Support

External ribs, HDPE profiles, steel frames and tie rods can reduce unsupported wall spans. This can significantly change the required wall design, especially for rectangular tanks.

However, reinforcement introduces additional issues:

• Connections between the wall and reinforcement

• Thermal expansion differences

• Corrosion protection for steel

• Load transfer at corners

• Weld concentration

• Inspection access

The tank wall and reinforcement should be engineered as one system.

7. Welded Joint Efficiency

A fabricated HDPE tank contains butt-welded and extrusion-welded joints. The strength and long-term performance of these joints must be included in the design.

The calculation may apply a weld-related reduction factor based on the material, welding process, joint type and applicable standard.

Using a thicker sheet does not automatically correct:

• Contaminated joint surfaces

• Incorrect welding temperature

• Poor bead geometry

• Inadequate edge preparation

• Mismatched welding rod

• Excessive residual stress

• Unqualified welding procedures

8. Nozzles, Manways and Equipment Loads

Most tank failures do not begin in the middle of an uninterrupted sheet. Openings and attachments frequently create the highest local stresses.

The designer should define the following before finalizing thickness:

• Inlet and outlet sizes

• Drain position

• Overflow and vent connections

• Manway size and location

• Level instruments

• External piping loads

• Ladders and platforms

• Agitators or mixers

• Heating or cooling equipment

• Lifting and anchoring points

A large nozzle removes load-bearing material from the shell and may require a reinforcement pad or independent piping support.

9. Installation Environment

Indoor and outdoor tanks have different design requirements.

Outdoor tanks may need to resist:

• UV exposure

• Wind

• Snow

• Rain accumulation

• Seismic loads

• Daily temperature changes

• Empty-tank uplift

• Foundation movement

A UV-stabilized HDPE grade should be specified for permanent outdoor exposure. Black, carbon-black-stabilized HDPE is commonly used, but potable-water projects must also verify the relevant sanitary approval.

Buried tanks require a separate structural design for earth pressure, groundwater, flotation, installation compaction and traffic loads. The above-ground thickness table in this guide must not be used to size an underground tank.

Water vs Wastewater Tanks: Does the Application Change the Thickness?

Yes. The liquid and operating environment can change both material selection and structural requirements.

HDPE may be chemically compatible with many aqueous wastewater streams, acids, alkalis and salts, but compatibility must be checked against the exact chemical, concentration and temperature.

Increasing wall thickness cannot make an incompatible material chemically suitable.

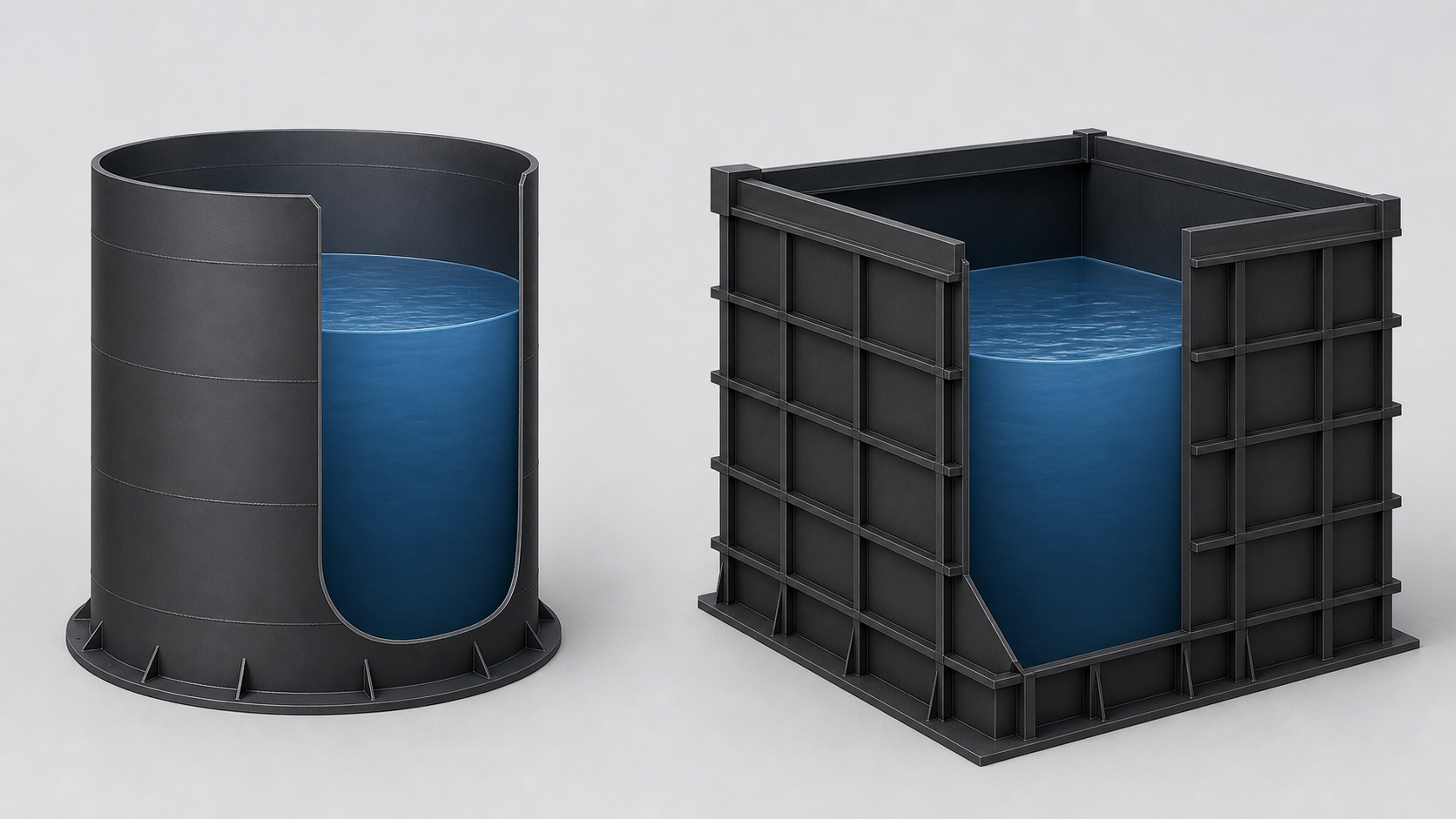

Cylindrical vs Rectangular HDPE Tank Thickness

Cylindrical HDPE Tanks

A vertical cylindrical tank uses its circular shape to distribute liquid pressure around the wall.

The main inputs normally include:

• Internal diameter

• Maximum liquid height

• Liquid specific gravity

• Design temperature

• Design life

• Internal pressure or vacuum

• Shell openings

• Wind and seismic conditions

• Roof and bottom configuration

For larger tanks, the shell may use several thicknesses. The upper course can be thinner, while the lower course uses thicker HDPE sheet to carry the higher hydrostatic load.

Rectangular HDPE Tanks

Rectangular tanks are often selected when installation space is limited or the tank must fit an existing process area.

Their flat walls are more sensitive to bending and deformation. Important design variables include:

• Wall length and height

• Corner design

• Reinforcement spacing

• Stiffener section

• Frame material

• Tie-rod position

• Top-edge restraint

• Wall-to-bottom joint

• Local nozzle loads

A thickness used successfully on a round tank must not be copied to a rectangular tank of the same capacity.

For large rectangular tanks, reducing reinforcement spacing may be more economical than increasing every wall to the next sheet thickness. The optimum solution depends on material cost, welding labor, frame cost and long-term reliability.

How Engineers Calculate HDPE Tank Wall Thickness

Step 1: Define the Complete Operating Envelope

The design should begin with:

• Liquid or chemical name

• Concentration

• Specific gravity

• Normal operating temperature

• Maximum design temperature

• Minimum site temperature

• Tank dimensions

• Maximum liquid level

• Required capacity

• Design life

• Pressure and vacuum conditions

• Indoor or outdoor location

• Fill-and-empty frequency

• Agitators, nozzles and external equipment

• Wind, snow and seismic conditions

The maximum credible operating condition—not only the normal condition—should be evaluated.

Step 2: Confirm HDPE Material Compatibility

The exact HDPE grade must be suitable for the liquid, temperature, UV exposure and fabrication method.

Material compatibility and structural thickness are different decisions. Both must be correct.

If HDPE is not suitable, the designer may need to consider PPH, PP, PVC, CPVC, PVDF, a dual-laminate construction or another tank material.

Step 3: Select the Applicable Design Standard

The standard depends on tank geometry, fabrication method, project location and customer specification.

Welded HDPE sheet tanks and one-piece rotationally molded polyethylene tanks are not governed by exactly the same design rules.

The applicable standard should be agreed before material is ordered.

Step 4: Determine the Design Loads

The designer evaluates hydrostatic pressure and all additional loads, including:

• Tank self-weight

• Roof load

• Wind

• Snow

• Seismic action

• Internal pressure or vacuum

• Piping loads

• Agitator loads

• Ladder and platform loads

• Thermal movement

• Transport and lifting loads

Step 5: Determine Allowable Long-Term Stress

Allowable design stress should be based on the actual HDPE grade and long-term service conditions.

The designer may apply adjustments for:

• Service temperature

• Chemical exposure

• Design life

• Welded joints

• Safety factors

• Repeated loading

• Material reduction factors

This is why short-term tensile strength from a generic datasheet cannot be used directly as the tank design stress.

Step 6: Calculate the Shell, Bottom, Roof and Reinforcement

The required wall thickness is calculated for the appropriate geometry.

For cylindrical tanks, lower shell courses typically experience the greatest hydrostatic load.

For rectangular tanks, panel bending and reinforcement spacing are major considerations.

The tank bottom may be fully supported by a flat foundation but still requires checks around drains, sumps, corners and wall connections. Roofs and covers must be designed for their own loads and must not be treated as walkable unless specifically engineered for personnel access.

Step 7: Select the Next Suitable Commercial Sheet Thickness

The theoretical result is converted into an available nominal HDPE sheet thickness.

The selection must account for:

• Manufacturer’s thickness tolerance

• Machining or surface removal

• Forming requirements

• Weld preparation

• Minimum fabrication thickness

• Procurement availability

• Any specified corrosion or abrasion allowance

The nominal ordered thickness should not fall below the minimum required design thickness after tolerances are considered.

Step 8: Verify Local Details

The complete design is then checked at:

• Nozzles

• Manways

• Corners

• Bottom joints

• Roof joints

• Reinforcement connections

• Anchors

• Lifting points

• Support interfaces

Wall thickness is only one part of tank integrity.

Which Standards Apply to Fabricated HDPE Tanks?

One of the most common specification mistakes is citing ASTM D1998 for every HDPE tank.

The official scope of ASTM D1998-21 covers flat-bottom, upright, cylindrical polyethylene tanks molded in one-piece seamless construction by rotational molding. It should not automatically be treated as the structural design standard for a welded tank fabricated from flat HDPE sheets.

For welded tanks, standards such as DVS 2205-2 and EN 12573-2 may be more relevant, depending on the project.

The latest edition, local regulations and customer specifications should always be verified before design approval.

Should an HDPE Tank Use One Thickness or Stepped Wall Thicknesses?

Not necessarily one thickness.

Large vertical cylindrical tanks can use different HDPE sheet thicknesses at different heights:

• Upper shell: lower hydrostatic load

• Middle shell: intermediate load

• Lower shell: highest hydrostatic load

Using stepped shell courses can reduce material weight and cost while providing the required strength at each elevation.

However, stepped construction adds butt-welded transitions and requires careful fabrication planning. The savings in raw material must be balanced against:

• Additional sheet sizes

• More welding

• Weld inspection

• Production scheduling

• Forming requirements

• Minimum order quantities

For small tanks, one uniform wall thickness may be simpler and more economical. For larger tanks, a multi-course design may provide better material efficiency.

Can Reinforcement Reduce the Required Sheet Thickness?

Potentially, yes—especially for rectangular tanks.

Reinforcement reduces the unsupported span of the HDPE wall. Possible reinforcement systems include:

• Welded HDPE ribs

• HDPE box profiles

• External steel frames

• Horizontal bands

• Vertical stiffeners

• Tie rods

• Supported top edges

The reinforcement must not be added by rule of thumb. The design should evaluate:

Sheet thickness + reinforcement spacing + reinforcement stiffness + connection strength + thermal expansion.

Using very thin sheet with excessive reinforcement can increase the number of welds, fabrication time and potential stress concentrations. Using very thick sheet with no reinforcement may increase material cost without producing the most efficient design.

The lowest-cost plate is not always the lowest-cost tank.

HDPE Sheet and Welding Requirements

Correct thickness alone does not guarantee a reliable tank.

Consistent Thickness

Sheet thickness tolerance should be documented. A nominal 15 mm sheet with an excessive negative tolerance could fall below the minimum calculated thickness.

Flatness

Good flatness supports accurate CNC cutting, forming, butt fusion and dimensional control.

Material Traceability

For municipal and industrial projects, request:

• Material grade

• Batch number

• Manufacturer’s certificate

• Density and mechanical-property data

• UV-stabilization information

• Potable-water documentation when applicable

Compatible Welding Material

HDPE welding rod should be compatible with the parent sheet. Resin family, melt behavior, color and chemical resistance should be considered.

Controlled Welding Procedures

Heated-tool butt welding and extrusion welding should follow documented procedures such as the relevant parts of DVS 2207.

Important variables include:

• Surface cleanliness

• Joint preparation

• Tool and air temperature

• Welding pressure

• Heating and cooling time

• Ambient workshop conditions

• Welder qualification

• Equipment condition

Thermal Expansion

HDPE expands and contracts more than steel and many building materials. Fixed steel frames, anchors, piping and nozzles must allow for appropriate movement without imposing excessive stress on the tank.

Common HDPE Tank Thickness Mistakes

Mistake 1: Selecting Thickness Only by Tank Volume

“10,000 liters” is not a complete tank specification. Dimensions, liquid height, shape, SG and temperature are still required.

Mistake 2: Copying a Thickness from Another Tank

A successful water tank thickness should not automatically be used for sludge, chemical dosing or industrial wastewater service.

Mistake 3: Treating Cylindrical and Rectangular Tanks as Equivalent

Round shells and flat panels resist liquid pressure differently.

Mistake 4: Ignoring Long-Term Creep

HDPE tanks remain loaded for years. Short-term tensile data cannot represent long-term structural performance.

Mistake 5: Ignoring Temperature

The same HDPE sheet thickness should not automatically be used at 20°C and at a significantly higher operating temperature.

Mistake 6: Adding Nozzles After the Wall Is Designed

Large outlets, manways and agitators can introduce major local loads. They should be included in the original calculation.

Mistake 7: Assuming Thicker Is Always Better

Excessive thickness increases weight, material cost, welding time and forming difficulty. Correct engineering is more valuable than simply choosing the thickest sheet.

Mistake 8: Using an Above-Ground Design Underground

Buried tanks must resist external soil and groundwater loads, not only internal liquid pressure.

Mistake 9: Assuming “Food Grade” Equals Tank Certification

For potable water, the sheet, fittings, welding materials and completed tank may be subject to different approval requirements. NSF/ANSI/CAN 61, for example, evaluates health effects of drinking-water-contact products; it is not a structural thickness standard.

Information to Provide Before Ordering HDPE Sheet

A supplier or tank fabricator can provide a more reliable quotation when the following information is available.

Tank Geometry

• Cylindrical or rectangular

• Vertical or horizontal

• Diameter or length × width

• Overall height

• Maximum liquid level

• Required working capacity

• Flat, sloped or conical bottom

• Open or closed top

Liquid Information

• Liquid or chemical name

• Concentration

• Specific gravity

• Solids content

• Normal operating temperature

• Maximum design temperature

• Cleaning chemicals

• Chemical safety data sheet

Operating Conditions

• Atmospheric, pressure or vacuum service

• Continuous or intermittent operation

• Filling and emptying frequency

• Required design life

• Indoor or outdoor installation

• Buried or above-ground installation

Tank Attachments

• Nozzle sizes and locations

• Manway size

• Vent and overflow

• Drain or sump

• Agitator

• Internal baffles

• Level instruments

• Ladders and platforms

• External piping loads

Structural Requirements

• Reinforcement arrangement

• Foundation and support

• Wind zone

• Snow load

• Seismic requirements

• Anchoring

• Design standard

• Inspection and testing requirements

If a structural calculation has already been completed, send the full sheet thickness schedule rather than only the maximum thickness.

Inspection and Testing Before Commissioning

A quality plan for a welded HDPE tank may include:

• Review of material certificates

• Incoming sheet thickness checks

• Dimensional inspection

• Welding procedure records

• Welder qualification records

• Visual examination of welds

• Verification of nozzle positions

• Inspection of reinforcement

• Leak testing

• Hydrostatic filling test when specified

• Final drawing and nameplate review

The test method and acceptance criteria should be established before fabrication begins.

A water-fill test can help confirm leak tightness and gross deformation, but it does not replace the structural design calculation.

Frequently Asked Questions

What HDPE sheet thickness is normally used for a water tank?

A common preliminary range for welded above-ground tanks is approximately 8–30 mm. Small, shallow or closely reinforced tanks may use the lower end of the range, while large, tall or heavily loaded tanks may require 30 mm or more.

Final thickness depends on liquid height, diameter, shape, temperature, reinforcement, weld design and external loads.

Is 10 mm HDPE sheet enough for a water tank?

It may be enough for some small, shallow or reinforced tanks, but it is not automatically suitable for every tank.

A tall tank, a large rectangular panel or an unreinforced wall may require substantially more thickness. The full tank dimensions and design conditions must be calculated.

What thickness is required for a 5,000-liter HDPE tank?

There is no universal thickness for a 5,000-liter tank.

A short cylindrical tank, tall cylindrical tank and rectangular tank can all hold 5,000 liters while producing different wall stresses. Provide the tank diameter or length and width, liquid height, SG, temperature and reinforcement before selecting thickness.

Does a wastewater tank need thicker HDPE than a clean-water tank?

Not automatically, but it may.

Municipal wastewater may have a specific gravity close to water, while sludge, industrial wastewater or concentrated solids can be heavier. Wastewater service may also introduce elevated temperature, cleaning chemicals, abrasion, operating cycles and agitator loads.

These conditions can increase the required thickness or change the material specification.

Why are rectangular HDPE tanks often reinforced?

Their flat walls bend under liquid pressure. Reinforcement reduces unsupported panel span and controls bulging.

Cylindrical tanks distribute pressure around the circumference and are generally more structurally efficient.

Can different HDPE sheet thicknesses be used in one tank?

Yes. Large cylindrical tanks may use thicker lower shell courses and thinner upper courses because hydrostatic pressure decreases with height.

The complete thickness schedule should come from the structural calculation.

Does ASTM D1998 apply to welded HDPE sheet tanks?

Not directly in every case.

ASTM D1998 is specifically written for above-ground, upright cylindrical polyethylene tanks molded in one-piece seamless construction by rotational molding. Welded sheet-fabricated tanks may require standards such as DVS 2205 or EN 12573.

Is black HDPE better for outdoor tanks?

Black, UV-stabilized HDPE is commonly selected for outdoor exposure because carbon black can provide effective UV protection.

The exact grade must still be verified for the liquid, design life and regulatory requirements. Potable-water service may require additional certification.

Can the same thickness guide be used for an underground HDPE tank?

No.

Underground tanks must resist soil pressure, groundwater, flotation, installation forces and possible vehicle loads. They require a separate buried-tank structural design.

Final Recommendation

Do not begin an HDPE tank project by asking only:

“Should I buy 10 mm, 15 mm or 20 mm HDPE sheet?”

Begin with the operating conditions:

Liquid → concentration → specific gravity → temperature → tank dimensions → shape → service life → external loads → reinforcement → structural calculation → final sheet thickness.

For preliminary planning, 8–30 mm covers many welded above-ground HDPE water and wastewater tank applications. It is not a universal design range, and large or demanding tanks may require thicker material.

The final sheet schedule should account for:

• Long-term HDPE behavior

• Tank geometry

• Hydrostatic loading

• Welded joints

• Reinforcement

• Sheet tolerances

• Nozzles and equipment

• Installation environment

• Applicable standards

Yubo Plastic supplies HDPE sheets, pipes and welding rods for water treatment, wastewater and industrial fabrication projects.

If you already have a tank calculation, send us the required sheet thicknesses, dimensions, quantities and material documentation. If the project is still at the planning stage, provide the liquid, temperature, specific gravity and tank dimensions so the material supply requirements can be reviewed before quotation.

The objective is not to buy the thickest HDPE sheet. It is to select consistent, weldable HDPE material that matches a properly engineered tank design.
