PPH sheet, also known as PP-H or polypropylene homopolymer sheet, is widely used to fabricate chemical storage tanks, electroplating tanks, scrubbers and other corrosion-resistant equipment.
The three main welding methods used in PPH tank fabrication are:
Hot gas welding
Extrusion welding
Heated-tool butt welding
Each method has a different role.
Welding Method |
Best Suited For |
Typical Tank Applications |
|---|---|---|
Hot gas welding |
Thin sections, small joints and detailed work |
Tack welding, root passes, small nozzles, repairs |
Extrusion welding |
Medium and thick PPH sheet |
Corners, bottom joints, nozzles, stiffeners and structural seams |
Butt welding |
Long straight sheet-to-sheet joints |
Joining large panels before tank assembly |
In practice, a large PPH chemical tank may use all three methods.
A typical fabrication process is:
sheet cutting → joint preparation → panel welding → tank assembly → tack welding → extrusion welding → inspection and testing
The most important point is that good welding does not depend on temperature alone.
Reliable PPH welding requires the correct combination of:
material compatibility + surface preparation + heat + welding speed + pressure + joint design + operator technique
PPH is a common commercial abbreviation for polypropylene homopolymer.
In international technical standards, the same material family is normally written as:
PP-H = Polypropylene Homopolymer
However, different PP-H grades can have different processing and mechanical properties.
Some industrial sheets may also use modified PP-H formulations.
For this reason, two sheets described simply as “PPH” should not automatically be assumed to have identical welding behavior.
Before welding, confirm:
exact material grade,
sheet manufacturer,
filler material compatibility,
technical data,
intended operating temperature,
chemical service conditions.
For critical chemical tank projects, trial welds should be carried out when the material grade, filler or welding equipment changes.

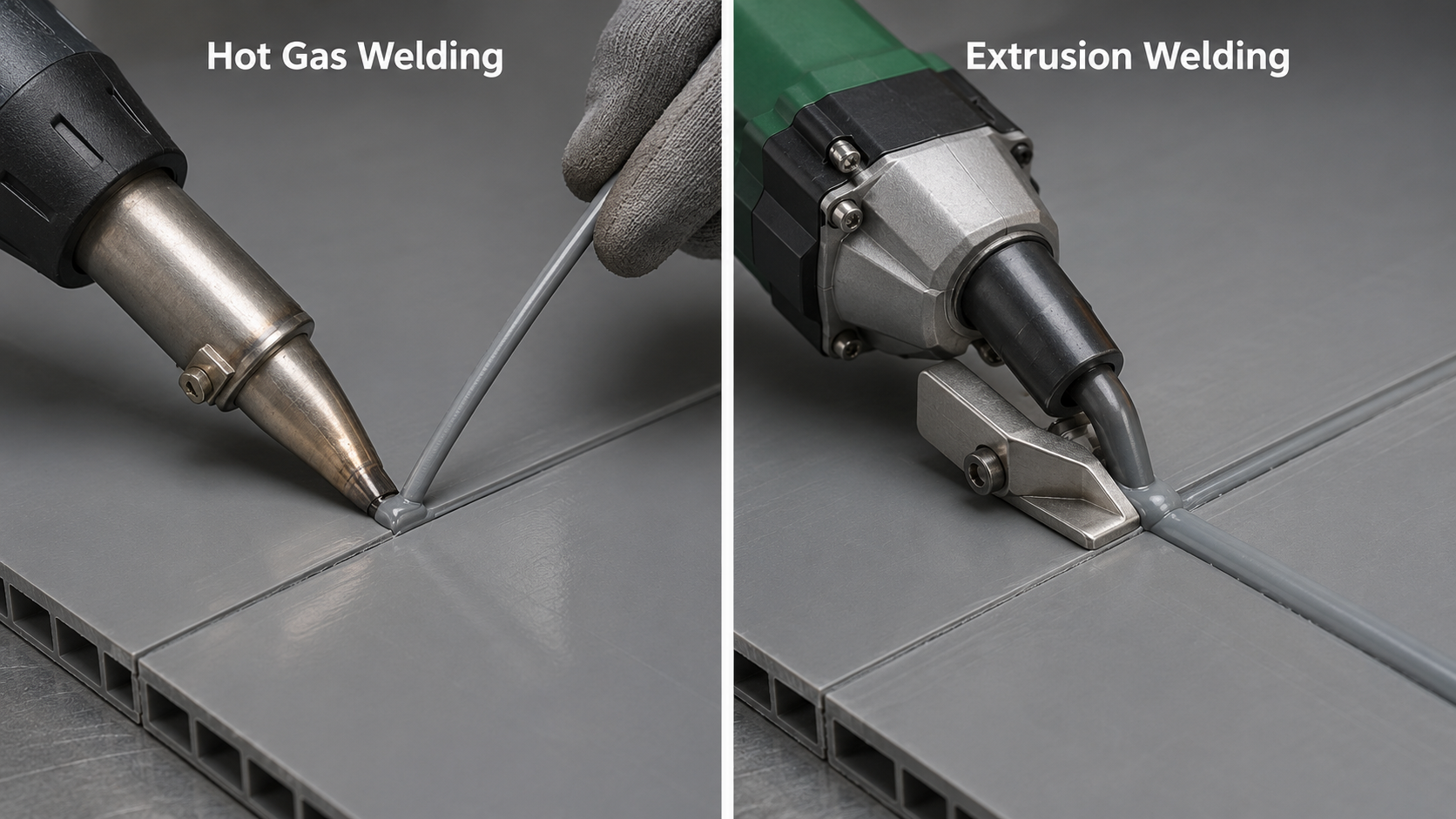

Hot gas welding and extrusion welding are the two most common methods used during PPH tank assembly.
Hot gas welding uses heated air to soften both the PPH sheet surface and the welding rod.
The softened rod is pressed into the prepared joint while both materials are in a thermoplastic state.
Hot gas welding is commonly used for:
tack welding,
small seams,
thin PPH sheet,
root passes,
small nozzles,
repair work,
detailed or difficult-to-access areas.
It offers good control but deposits relatively little filler material.
Large joints may therefore require several welding passes.
Extrusion welding uses a handheld plastic extruder.
Polypropylene filler material is melted inside the machine and discharged as molten extrudate.
At the same time, hot air preheats the PPH base material immediately before the molten plastic reaches the joint.
The welding shoe then presses and shapes the extrudate into the seam.
Extrusion welding is widely used for:
tank wall-to-bottom joints,
vertical tank corners,
large fillet welds,
large nozzles,
reinforcement ribs,
thicker PPH sheet,
electroplating tanks,
Because extrusion welding deposits much more material per pass, it is generally more efficient for structural tank fabrication.
Neither method is always better.
The correct choice depends on the joint.
Factor |
Hot Gas Welding |
Extrusion Welding |
|---|---|---|
Equipment |
Simpler |
More complex |
Filler output |
Low |
High |
Thin sheet |
Excellent |
Less suitable |
Thick sheet |
Multiple passes may be needed |
Very suitable |
Detail work |
Excellent |
More limited |
Large structural seams |
Slower |
Highly suitable |
Repairs |
Very useful |
Useful for large repairs |
Tank corners |
Possible |
Commonly preferred |
Tank bottom seams |
Possible |
Commonly preferred |
For many chemical tanks, the best approach is:
hot gas welding for positioning and detail work + extrusion welding for structural seams
Butt welding can also be used to create large PPH panels before tank assembly.
There is no single universal PPH welding temperature.
Actual settings depend on:
welding process,
PPH grade,
filler material,
machine design,
nozzle or welding shoe,
sheet thickness,
air volume,
welding speed,
ambient conditions.
Typical polypropylene welding values can be used as starting references.
Parameter |
Typical Starting Range |
|---|---|
Hot air temperature |
Approx. 300–340°C |
Air volume |
Approx. 40–60 L/min |
Welding speed |
Approx. 250–350 mm/min |
Welding rod |
Often 3–4 mm depending on process |
Parameter |
Typical Starting Range |
|---|---|
Extrudate temperature |
Approx. 210–240°C |
Preheating air temperature |
Approx. 250–300°C |
Welding speed |
Often around 250–300 mm/min as an initial reference |
Filler |
Compatible PP / PP-H material |
These figures should be treated as starting values, not universal production settings.
The final parameters should be validated using the actual sheet, welding filler and equipment.
Two welders can use the same displayed temperature and still produce very different results.
That is because total heat input depends on several factors.
If the operator moves too quickly, the PPH surface may not receive enough heat.
If the operator moves too slowly, the material can overheat.
The softened materials need sufficient pressure to form a reliable bond.
Too little pressure may cause incomplete fusion.
Too much pressure can distort the bead or push molten material away from the joint.
Hot air temperature and airflow work together.
A high temperature setting with very low airflow may still provide insufficient useful heat.
During extrusion welding, filler output must match:
joint size,
sheet thickness,
welding shoe,
travel speed.
A very large bead is not automatically a strong bead.
If the base material is not sufficiently preheated, the extrudate may sit on the surface without achieving proper fusion.
Before welding, verify the exact PPH or PP-H grade.
Do not identify material only by color.
Check:
sheet specification,
material grade,
batch information,
filler compatibility.
For chemical tanks, consistent and traceable material is preferable to unknown general-purpose PP filler.
Store PPH sheet and welding rod away from:
oil,
dirt,
moisture,
workshop contamination.
Avoid welding surfaces that have condensation.
Contamination can become trapped inside the weld and reduce reliability.

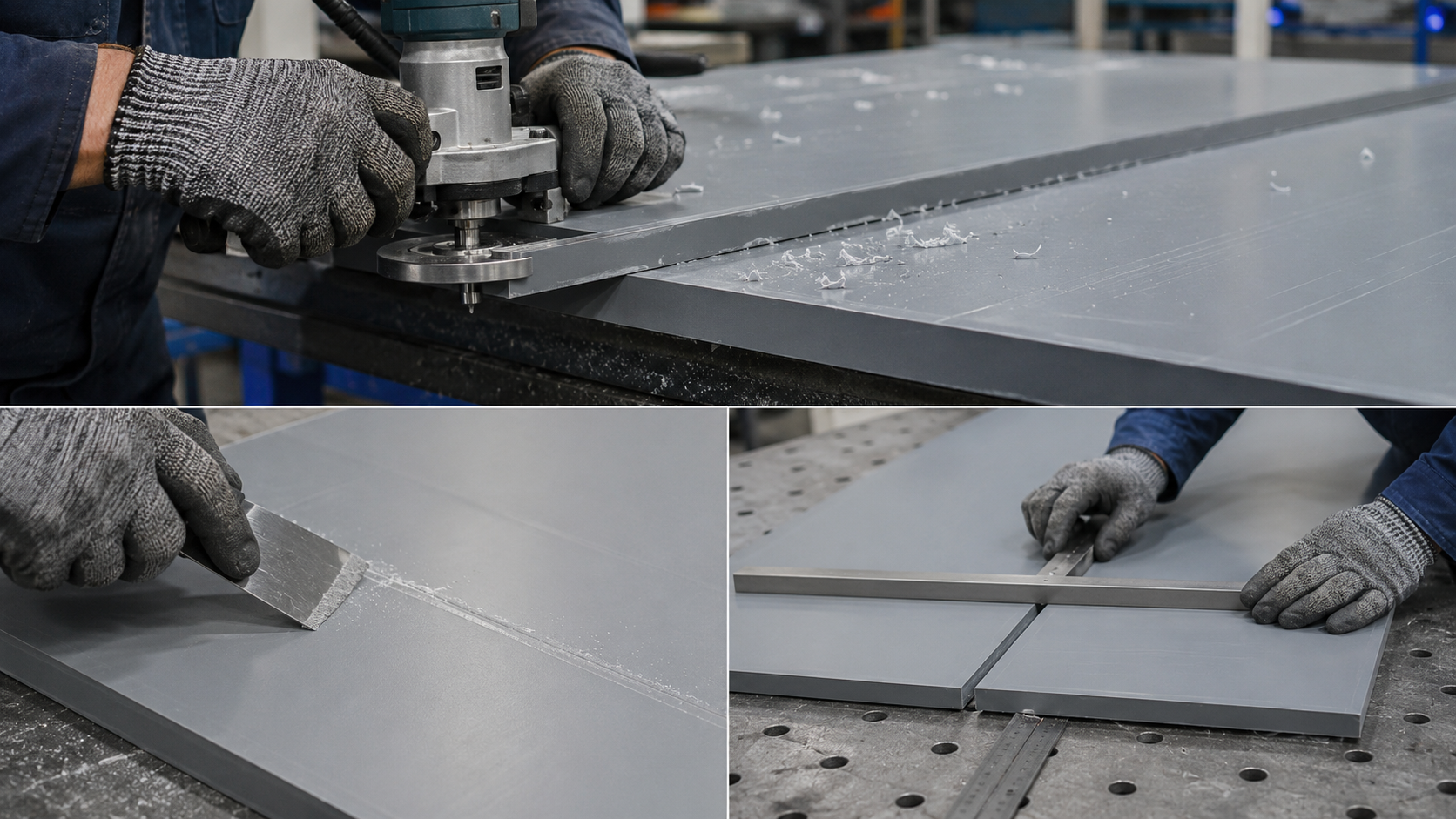

Accurate joint preparation is critical.
Preparation may include:
cutting,
machining,
beveling,
routing,
scraping,
trimming.
Joint geometry should match the welding method and sheet thickness.
Do not try to compensate for poor fit-up simply by adding more weld material.
The welding area should normally be mechanically prepared shortly before welding.
This helps expose a fresh, clean polypropylene surface.
After scraping, avoid touching the prepared area with bare hands.
Before structural welding, check:
dimensions,
panel alignment,
joint gaps,
corners,
nozzle locations,
bottom position.
Hot gas welding is frequently used for tack welds before extrusion welding.
During extrusion welding, hot air preheats the PPH surface immediately before molten filler enters the joint.
The operator should maintain consistent:
preheating,
welding speed,
extruder angle,
pressure,
extrusion output.
For hot gas welding, the sheet surface and welding rod should both reach the correct thermoplastic condition before pressure is applied.
Allow the weld to cool naturally before applying significant mechanical load.
After cooling, inspect for:
incomplete fusion,
cavities,
cracks,
irregular bead shape,
overheating,
contamination,
missing weld sections.
Critical chemical tanks may also require leak testing, hydrostatic testing or other inspection procedures according to the project specification.

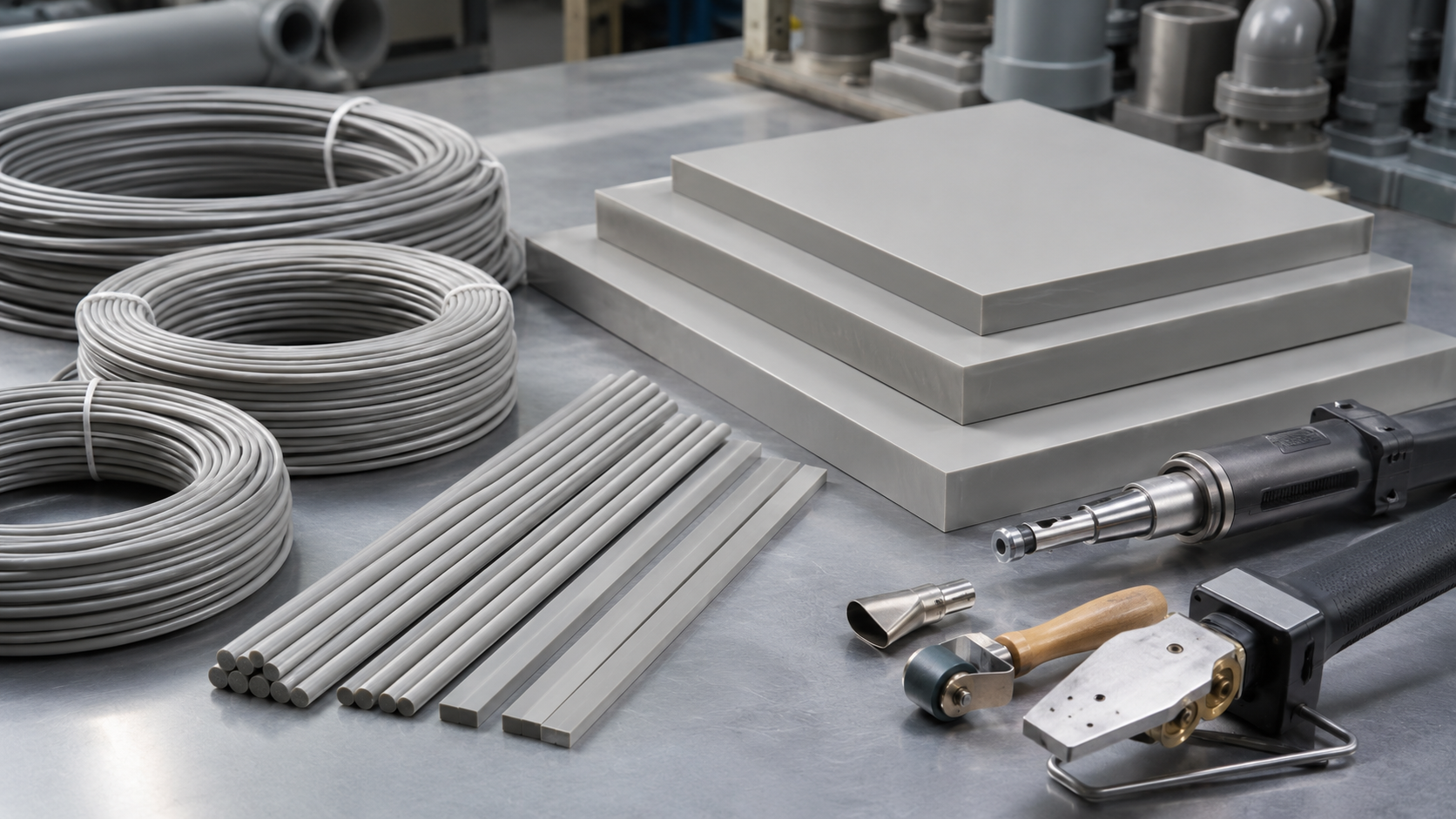

Welding rod becomes part of the finished tank, so filler selection is important.
For PPH tank fabrication, use filler material that is verified as compatible with the PP-H base sheet.
Do not assume that every product labeled simply as “PP welding rod” is suitable for every PPH sheet.
Gray sheet and gray welding rod are not necessarily the same material.
Color does not confirm:
polymer grade,
additives,
melt behavior,
mechanical properties.
Industrial fabrication benefits from welding rod with:
stable diameter,
consistent material,
clean surface,
controlled production,
batch traceability.
Protect filler material from dirt, oil, dust and moisture before welding.
Contaminated filler can introduce defects directly into the weld.
Welding defects often reveal problems with heat input, preparation or operator technique.
Defect |
Possible Cause |
Corrective Action |
|---|---|---|
Incomplete fusion |
Insufficient heat or excessive speed |
Increase useful heat input or reduce speed |
Cold weld |
Poor preheating |
Check temperature, airflow and preparation |
Overheated surface |
Excessive temperature or slow travel |
Reduce heat input |
Porosity or cavities |
Moisture or contamination |
Check storage and cleaning |
Uneven bead |
Unstable speed, pressure or output |
Stabilize welding technique |
Poor bead adhesion |
Insufficient preheat or dirty surface |
Reprepare surface and adjust preheating |
Cracking |
Stress, poor fusion or bad joint design |
Review joint geometry and procedure |
Excessive distortion |
Too much heat or poor welding sequence |
Control heat input and weld sequence |
Leakage |
Incomplete weld, cavity or crack |
Locate defect and repair properly |
A defective weld should not automatically be repaired by placing another bead over the top.
If the original defect remains underneath, the additional weld may simply hide the problem.
The defective section should be evaluated, removed if necessary, prepared again and rewelded.
Possible causes include:
moisture,
contamination,
excessive temperature,
unstable extrusion,
incorrect filler,
unsuitable welding shoe condition,
excessive weld cross-section,
cooling problems.
Large extrusion welds should not automatically be made as one extremely large bead.
In some situations, multiple controlled welding passes can provide more reliable results.
Cracking does not always mean the sheet itself is defective.
Common causes include:
The surface may look acceptable while the root of the weld has not fused properly.
Poor welding sequence or excessive localized heat can create stress.
Sharp corners and poorly designed transitions can concentrate stress.
Incorrect or inconsistent filler material can reduce weld performance.
A weld can also crack because of:
excessive tank deformation,
inadequate reinforcement,
large nozzle loads,
external piping loads,
incorrect sheet thickness.
For this reason, welding should always be considered together with tank design.

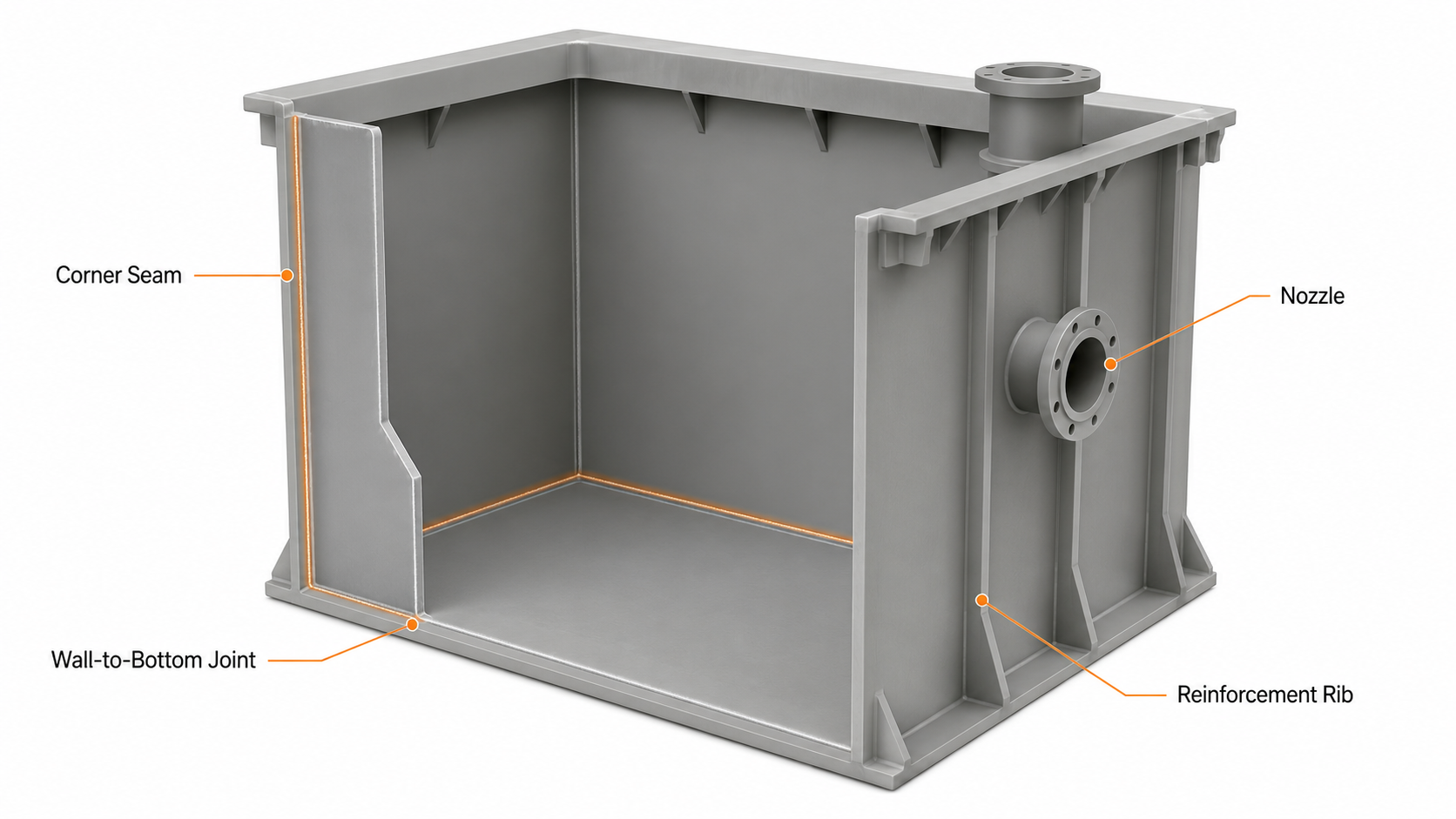

Different tank areas require different welding strategies.
Long straight sheet joints may be joined using heated-tool butt welding before assembly.
This can be efficient when producing large tank walls or cylindrical shells.

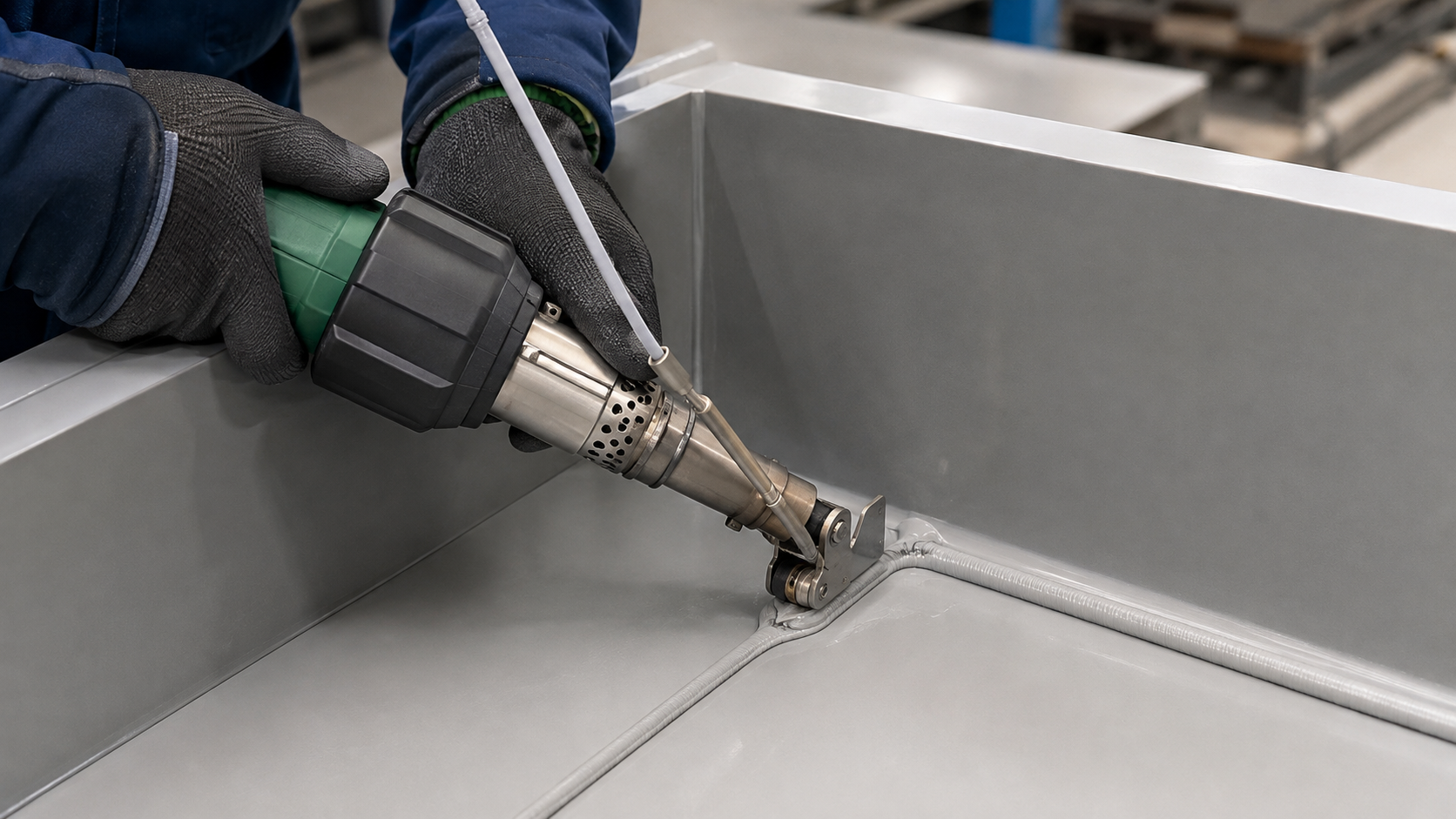

Large rectangular tank corners are commonly extrusion welded.
Good alignment and distortion control are important because long PPH panels can move as heat is introduced.
The bottom connection is one of the most important structural areas in a tank.
It must handle hydrostatic load and wall deformation.
A large external bead alone does not guarantee adequate strength.
Correct preparation, root fusion and weld geometry are essential.
Small nozzles may be hot gas welded.
Larger nozzle collars and reinforced connections are often extrusion welded.
Large nozzles should be considered during tank design because they can create significant local stress.
Extrusion welding is commonly used to attach reinforcement profiles and stiffeners to fabricated PPH tanks.

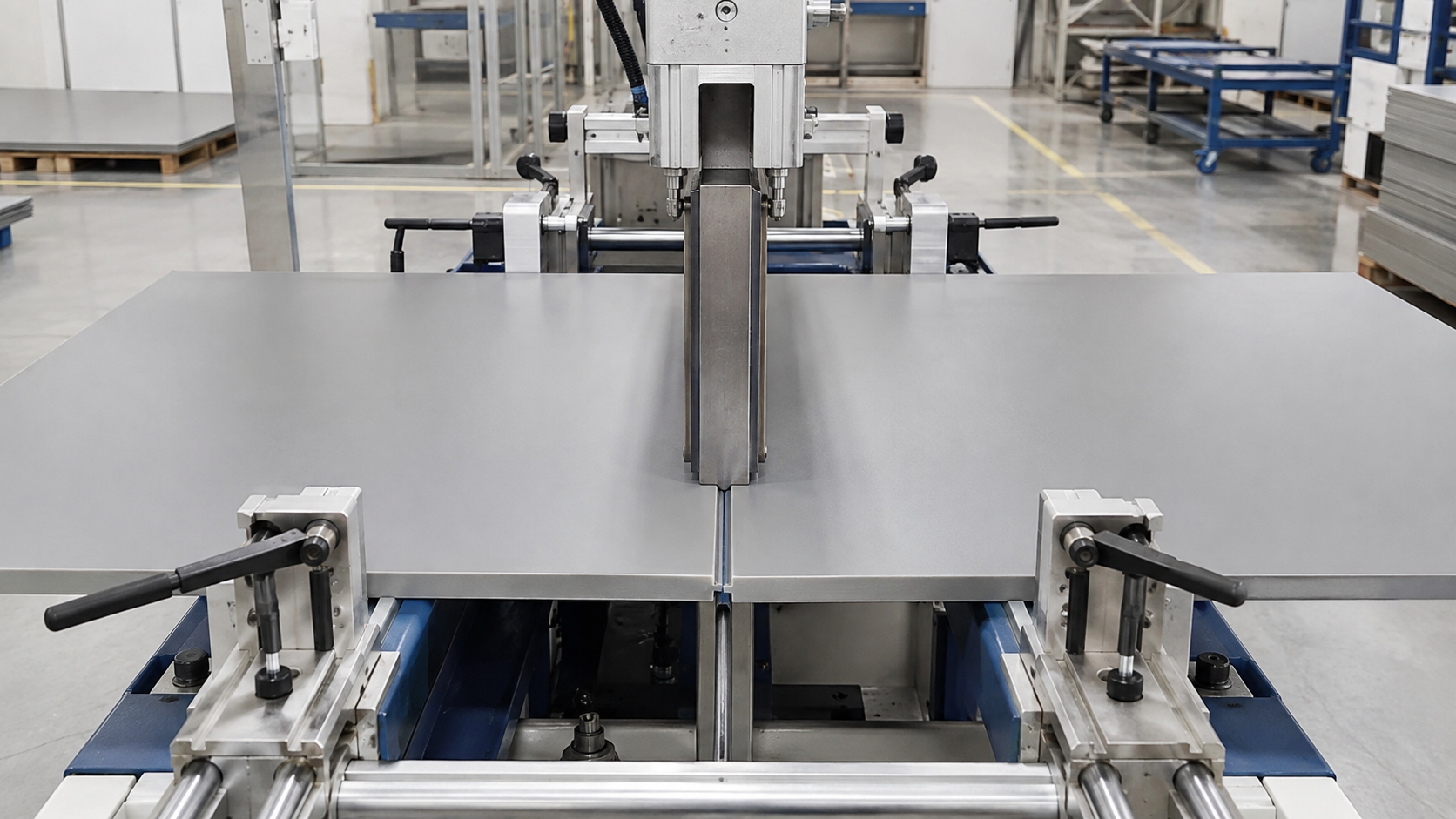

Heated-tool butt welding is useful for joining straight PPH sheet edges.
The prepared sheet edges are heated against a controlled hot plate.
The heater is then removed and the softened surfaces are pressed together under controlled pressure.
Unlike hot gas and extrusion welding, traditional filler rod is not required.
Butt welding is especially useful for:
wide PPH panels,
long straight seams,
cylindrical shells,
large process equipment.
Reliable butt welding requires careful control of:
machining,
alignment,
heating time,
changeover time,
joining pressure,
cooling.
For PP-H material, heated-tool welding is commonly associated with DVS 2207-11 procedures.
Industrial thermoplastic fabrication frequently references DVS standards.
Relevant standards can include:
DVS 2207-3
Hot gas welding of thermoplastics.
DVS 2207-4
Extrusion welding of thermoplastics.
DVS 2207-11
Heated-tool welding of polypropylene materials, including PP-H.
DVS 2205
Design and calculation of thermoplastic tanks and apparatus.
The exact requirements depend on the project, country, tank size, stored chemical and customer specification.
Applicable standards should be agreed before fabrication begins.
Visual inspection is the first step.
Inspect:
bead shape,
continuity,
fusion along the edges,
overheating,
cavities,
cracks,
missing weld areas.
Dimensional inspection is also important because welding heat can distort large panels.
For critical tanks, additional testing may include:
representative weld testing,
leak testing,
hydrostatic testing,
project-specific inspection procedures.
A smooth-looking weld should not automatically be assumed to be defect-free.
Confirm the exact PP-H grade before production.
Do not choose welding rod based only on color or price.
Scrape and prepare the joint shortly before welding.
Temperature, airflow, pressure, extrusion output and speed must work as a system.
Trial welds are particularly valuable when changing materials, equipment or filler.
For industrial projects, record material batches and important welding parameters.
A simple method-selection rule is:
Small joint or thin section?
Consider hot gas welding.
Heavy structural seam or thicker PPH sheet?
Consider extrusion welding.
Long straight panel seam?
Consider heated-tool butt welding.
Large chemical tank?
Expect to use more than one welding process.
The correct question is not:
“Which PPH welding method is best?”
It is:
“Which welding method is best for this specific joint?”
Yes.
PPH or PP-H is a weldable thermoplastic widely used in chemical tanks, scrubbers, electroplating equipment and corrosion-resistant fabrication.
Common methods include hot gas welding, extrusion welding and heated-tool butt welding.
There is no single universal temperature.
For hot gas welding, approximately 300–340°C is commonly used as an initial reference range.
For extrusion welding, typical starting melt temperatures are approximately 210–240°C, with preheating air often around 250–300°C.
Final settings must be validated for the actual material and equipment.
Extrusion welding is generally more efficient for large structural seams and thicker sheet.
Hot gas welding is better suited to detailed work, thin sections, tack welding and smaller repairs.
Many tanks use both.
Do not assume that every general-purpose PP welding rod is suitable.
The filler material should be verified as compatible with the PP-H / PPH sheet.
A smooth external bead can still contain:
incomplete root fusion,
internal cavities,
contamination,
missed weld areas.
This is why critical chemical tanks should not rely only on visual appearance.
Welding quality starts with the base material.
PPH sheet intended for tank fabrication should provide:
consistent thickness,
good flatness,
stable material quality,
predictable weldability,
batch consistency,
suitable chemical resistance.
Material selection should consider:
chemical + concentration + operating temperature + sheet thickness + tank design + service life
Even an excellent weld cannot compensate for using the wrong material.
Reliable PPH chemical tank welding begins by identifying:
the material → the joint → the welding method → the welding parameters → the inspection requirement
For most industrial tanks:
Hot gas welding is useful for tacking, small joints, thin sections and repairs.
Extrusion welding is commonly used for structural seams, tank corners, bottom joints, large nozzles and reinforcement.
Heated-tool butt welding is useful for joining large straight panels before tank assembly.
The welding procedure should always be validated according to the actual PPH grade, filler material, equipment and operating conditions.
A chemical tank should ultimately be evaluated as a complete system:
PPH material + sheet thickness + welding + reinforcement + nozzles + chemical resistance + operating temperature + fabrication quality
A thick PPH sheet cannot compensate for a poor weld, and a perfect weld cannot compensate for an incorrectly designed tank.
For PPH chemical tank, electroplating tank, scrubber or corrosion-resistant equipment projects, Yubo Plastic can supply PPH sheet together with compatible thermoplastic welding materials according to the required dimensions and fabrication conditions.
